Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear apron RH and trim panel - rear quarter pillar UPR RH. Ref. to EXTERIOR/INTERIOR TRIM>Rear Quarter Trim>REMOVAL .

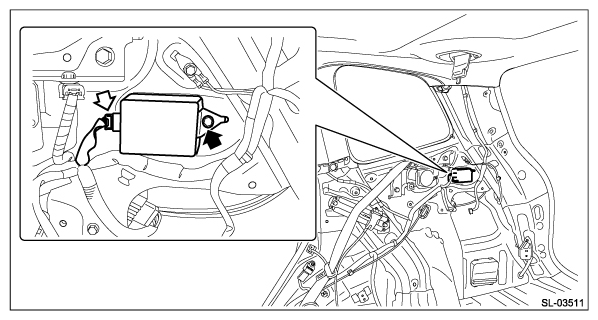

  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.
      G12515838Courtesy of SUBARU OF AMERICA, INC.
