Vehicle Dynamics Control (VDC) System
›
ABS Sequence Control
›
Operation
›

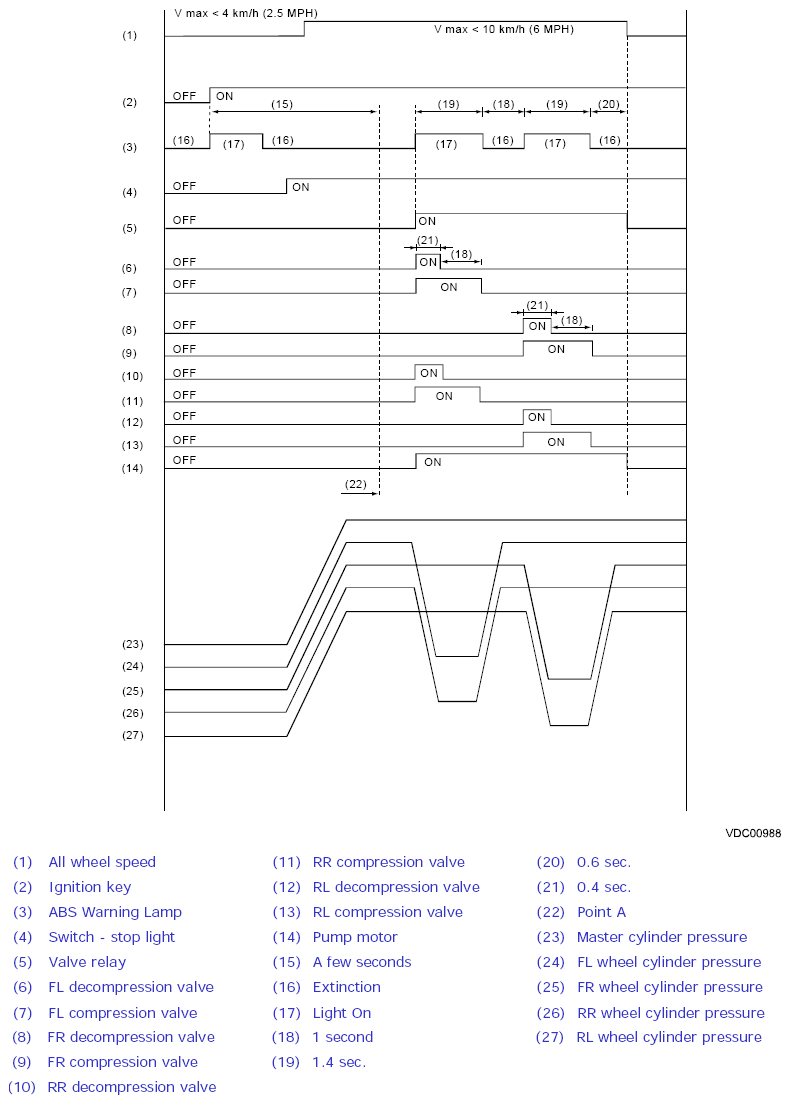

Conditions For Abs Sequence Control
Conditions For Abs Sequence Control
NOTE:
The control operation starts at point A.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
