Multi-Function Display Switch
- Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the center grille assembly. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY .

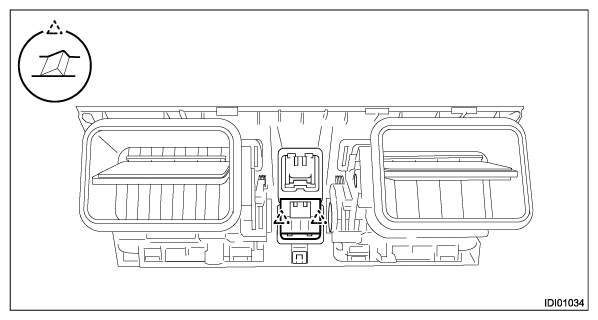

- Release the claws and remove the switch - multi-function display.
