Engine Control/Fuel Injection System (H4DO)
›
General Description
›
Component With Torque Specifications
›
Intake Manifold Assembly 1
Intake Manifold Assembly 1

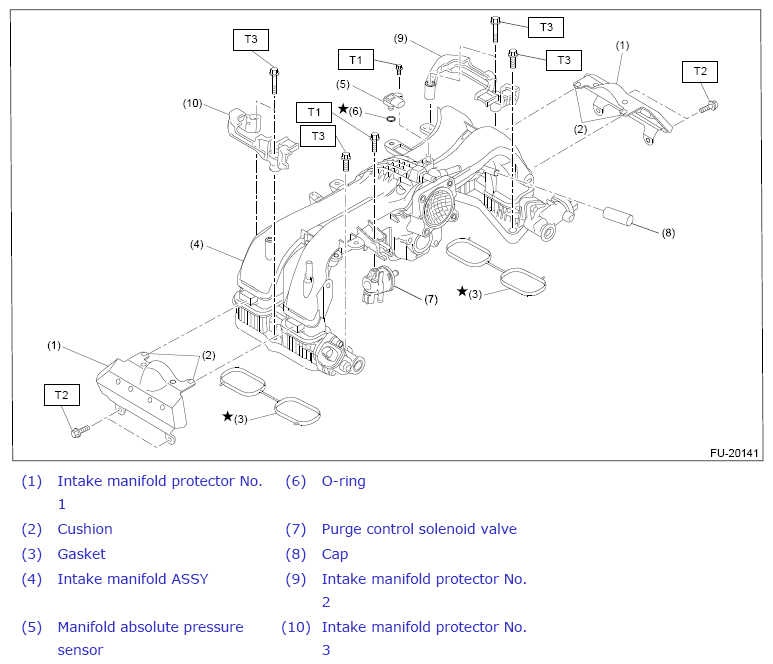

Fig 1: Intake Manifold Assembly 1 Components
Courtesy of SUBARU OF AMERICA, INC.
