LH Side

Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .

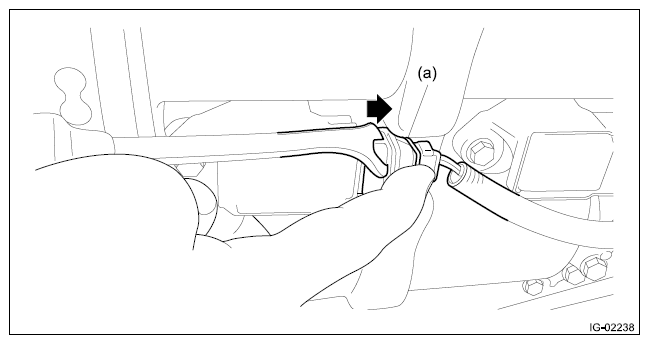

Disconnect the connector from ignition coil.
NOTE: While pressing the spring (a) shown in the figure, slide it in the direction of the arrow with a clip remover.

Courtesy of SUBARU OF AMERICA, INC.

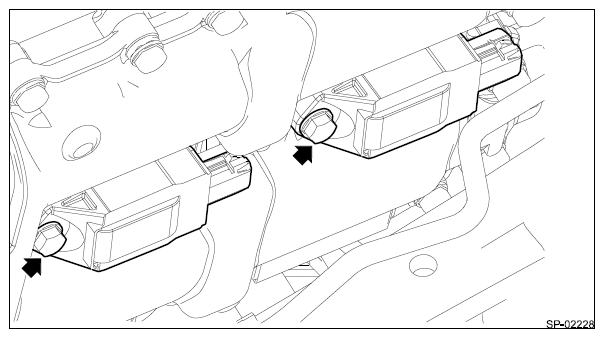

Remove the ignition coil.

Courtesy of SUBARU OF AMERICA, INC.
Remove the spark plug with a spark plug socket.
