Home › Subaru › 2018 › Forester 2.5i, Standard Trans › Repair and Diagnosis › Steering › Power Steering › Power Steering System (Diagnostics) › Control Module I/O Signal › Wiring Diagram

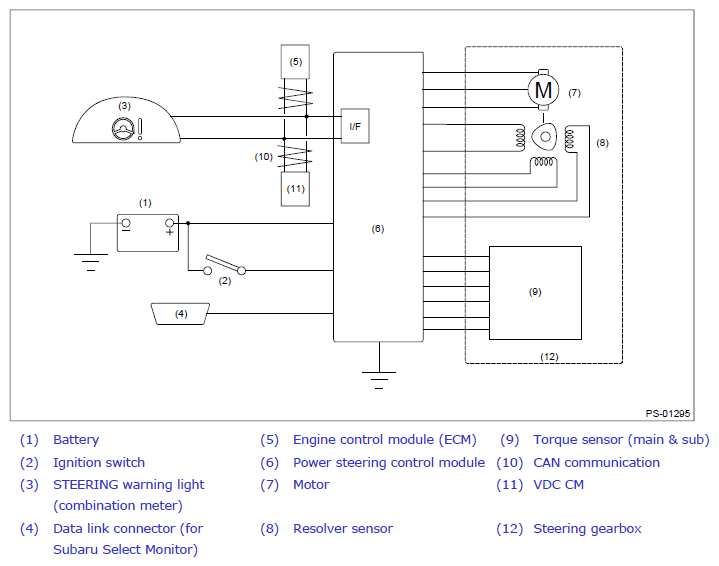

Control Module I/O Signal: Wiring Diagram

G12518525Courtesy of SUBARU OF AMERICA, INC.
