Front Stabilizer: Removal

  1. Lift up the vehicle, and then remove the left and right front wheels.
  2. Remove the under cover COMPL - front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Remove the under cover front - transmission. (Non-turbo model)
  4. Remove the front crossmember support. Ref. to FRONT SUSPENSION>Front Crossmember Support Plate>REMOVAL .
  5. Remove the front stabilizer.
    1. Remove the left and right stabilizer links.
    2. Remove the clamp - stabilizer bushing on the left and right sides.

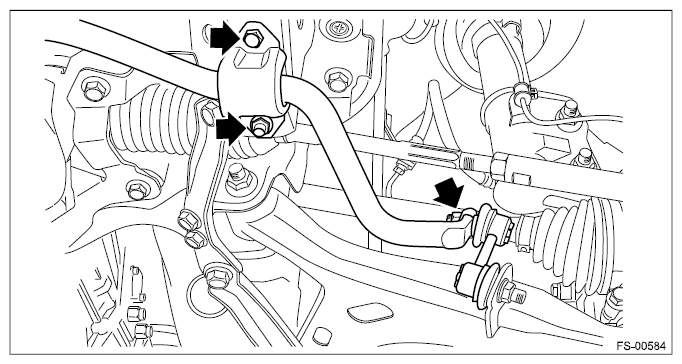

    G12513070Courtesy of SUBARU OF AMERICA, INC.
