AT Shift Lock Control System
›

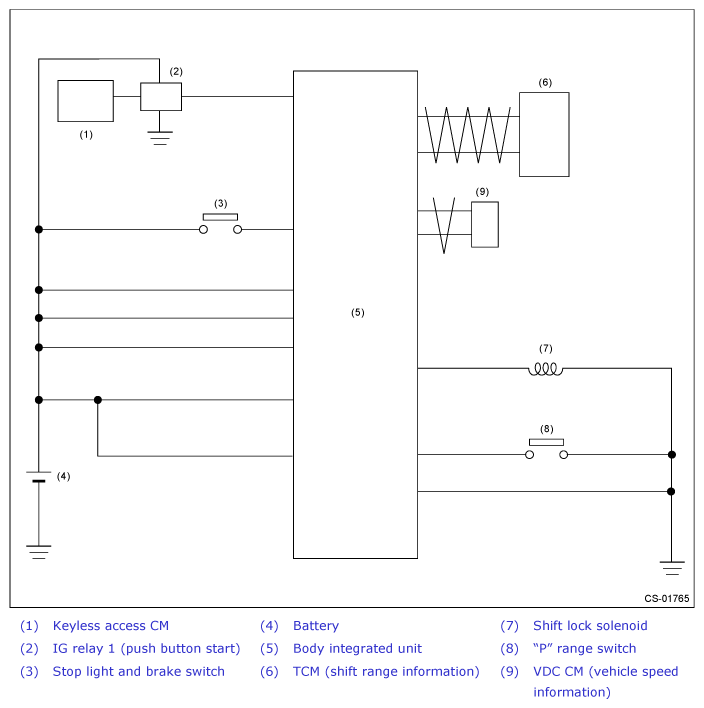

Wiring Diagram
›
Model With Push Button Ignition Switch
Model With Push Button Ignition Switch
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
