Fuel Insulator: Removal

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the clip from the air intake boot, and loosen the clamp.

Fig 1: Locating Air Intake Boot Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot, and place it aside so that it does not interfere with the work.
CAUTION: Be careful not to pull out the PCV hose.

Fig 2: Removing Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>REMOVAL .
Remove the fuel insulator.

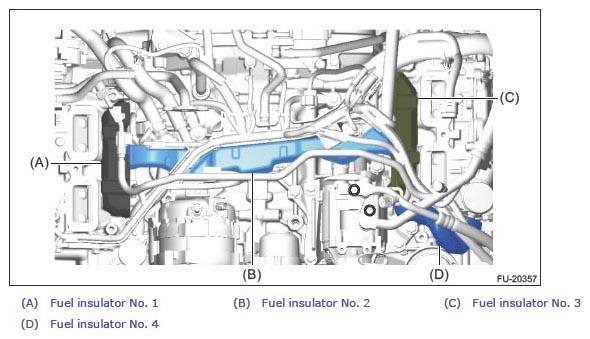

Fig 3: Locating Fuel Insulators

Courtesy of SUBARU OF AMERICA, INC.
