Audio Or Navigation Unit
- Power supply and speaker output terminal

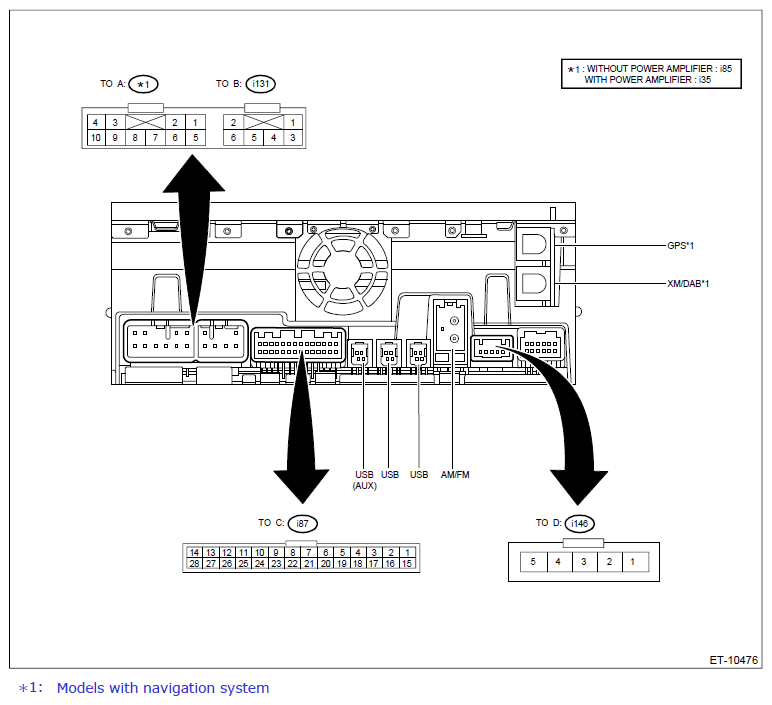

Terminal No. Contents Measuring condition Standard (i35) or (i85) No. 1 FR+ - - (i35) or (i85) No. 2 FL+ - - (i35) or (i85) No. 3 ←→ Chassis ground +ACC ACC ON 11 - 15 V (i35) or (i85) No. 4 ←→ Chassis ground +B Always 11 - 15 V (i35) or (i85) No. 5 FR- - - (i35) or (i85) No. 6 FL- - - (i35) or (i85) No. 7 ←→ Chassis ground GND Always 0 V (i35) or (i85) No. 8 ANT-ON - - (i35) or (i85) No. 9 - - - (i35) or (i85) No. 10 IILL+ - - (i36) or (i131) No. 1 RR+ - - (i36) or (i131) No. 2 RL+ - - (i36) or (i131) No. 3 RR- - - (i36) or (i131) No. 4 - - - (i36) or (i131) No. 5 )ILL- - - (i36) or (i131) No. 6 RL- - - - Steering switch and AUX input terminal for microphone etc.
Terminal No. Contents Measuring condition Standard (i87) No. 1 ←→ Chassis ground IGN IGN ON 11 - 15 V (i87) No. 2 REVERSE - - (i87) No. 3 BRIGHT - - (i87) No. 4 VCC - - (i87) No. 5 MIC+ - - (i87) No. 6 MIC DET - - (i87) No. 7 - - - (i87) No. 8 - - - (i87) No. 9 CAN+ - - (i87) No. 10 CAN- - - (i87) No. 11 AC-UART (+) - - (i87) No. 12 AC-UART (-) - - (i87) No. 13 MIC2+ - - (i87) No. 14 MIC2- - - (i87) No. 15 ←→ Chassis ground PKB At parking ON 1 V or less (i87) No. 16 - - - (i87) No. 17 ←→ Chassis ground - - - (i87) No. 18 SGND - - (i87) No. 19 MIC- - - (i87) No. 20 TEST - - (i87) No. 21 STEERING SW1+ - - (i87) No. 22 STEERING SW2+ - - (i87) No. 23 STEERING GND - - (i87) No. 24 DCM MUTE - - (i87) No. 25 FRONT ON - - (i87) No. 26 R SIG - - (i87) No. 27 R/L SIG - - (i87) No. 28 L SIG - - - Rearview camera
Terminal No. Contents Measuring condition Measurement value (i146) No. 1 ←→ Chassis ground CGND Always 0 V (i146) No. 2 CB+ - - (i146) No. 3 CV+ - - (i146) No. 4 CV- - - (i146) No. 5 NC - -
