Lighting System: General Description: Specification

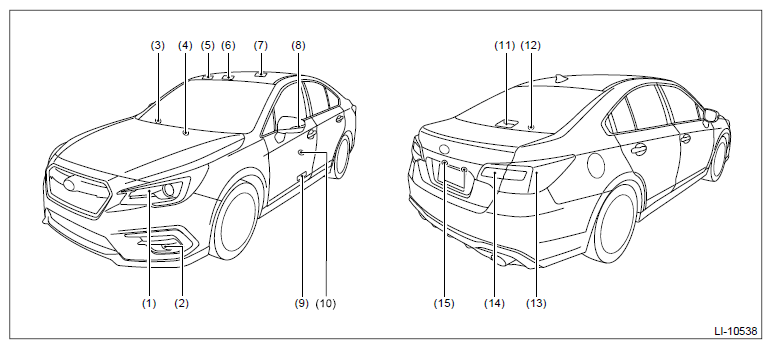

- Sedan model
No. Description Capacity and wattage Type (1) Headlight (halogen type) Low beam 12 V - 55 W H11 High beam 12 V - 60 W HB3 Front turn signal light 12 V - 28 W 7444NA Daytime running light/parking light 13.5 V - 22/1.1 W (LED) (1) Side marker light 13.5 V - 2.7 W (LED) (1) Headlight (LED type) Low beam/high beam 13.5 V - 29/32 W (LED) (1) Front turn signal light 12 V - 28 W 7444NA Daytime running light/parking light 13.5 V - 22/1.1 W (LED) (1) Side marker light 13.5 V - 2.7 W (LED) (1) (2) Front fog light 12 V - 5.4 W (LED) (1) (3) Glove box light 12 V - 1.4 W (LED) (1) (4) Pocket light 12 V - 1.4 W (LED) (1) (5) Vanity mirror light 14 V - 1.4 W - (6) Spot map light 12 V - 8 W - (7) Room light 12 V - 8 W - (8) Side turn signal light 12 V - 0.4 W (LED) (1) (9) Door step light 12 V - 5 W W5W (10) Door pocket light 12 V - 1.4 W (LED) (1) (11) High-mounted stop light 12 V - 0.8 W (LED) (1) (12) Trunk room light 12 V - 3.8 W SAE#194 (13) Rear combination light Tail & stop light 12 V - 0.4/4.7 W (LED) (1) Turn signal light 12 V - 21 W WY21W Side marker light 12 V - 5 W W5W (14) Rear finisher light Back-up light 12 V - 16 W W16W (15) License plate light 12 V - 5 W W5W (1) Non-disassembly type - OUTBACK model

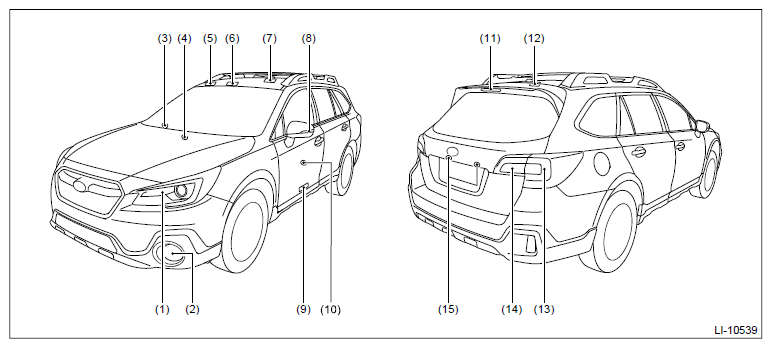

No. Description Capacity and wattage Type (1) Headlight Low beam 12 V - 55 W H11 High beam 12 V - 60 W HB3 Front turn signal light 12 V - 28 W 7444NA Daytime running light/parking light 13.5 V - 22/1.1 W (LED) * Side marker light 13.5 V - 2.7 W (LED) * Headlight (LED type) Low beam/high beam 13.5 V - 29/32 W (LED) * Front turn signal light 12 V - 28 W 7444NA Daytime running light/parking light 13.5 V - 22/1.1 W (LED) * Side marker light 13.5 V - 2.7 W (LED) * (2) Front fog light 12 V - 55 W H11 (3) Glove box light 12 V - 1.4 W (LED) * (4) Pocket light 12 V - 1.4 W (LED) * (5) Vanity mirror light 14 V - 1.4 W - (6) Spot map light 12 V - 8 W - (7) Room light 12 V - 8 W - (8) Side turn signal light 12 V - 0.4 W (LED) * (9) Door step light 12 V - 5 W W5W (10) Door pocket light 12 V - 1.4 W (LED) * (11) High-mounted stop light 12 V - 1.1 W (LED) * (12) Luggage room light 12 V - 13 W SAE#912 (13) Rear combination light Tail & stop light 12 V - 0.4/4.7 W (LED) * Turn signal light 12 V - 21 W WY21W Side marker light 12 V - 5 W W5W (14) Rear finisher light Back-up light 12 V - 16 W W16W (15) License plate light 12 V - 5 W W5W *: Non-disassembly type
