Outback Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the light assembly - rear combination.
    1. Remove the clips and detach the rear combination light covers.
    2. Remove the bolt and release the clip.
    3. Disconnect the connector and remove the light assembly - rear combination.
    CAUTION: Be careful not to damage the clips.

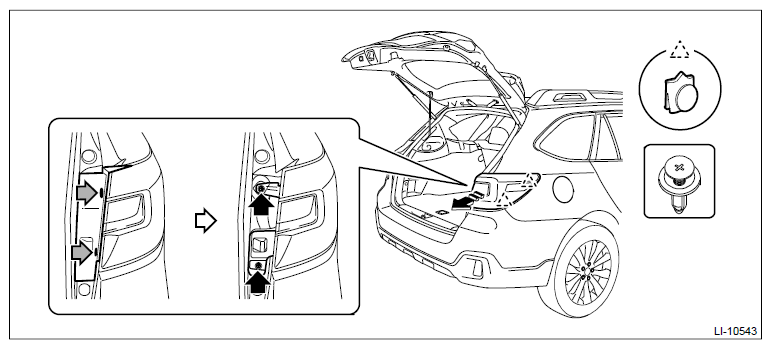

    G12408153Courtesy of SUBARU OF AMERICA, INC.
