Front Door Glass: Installation

Install the glass - front door partition.
Install the running channel - front door and the sash assembly - partition.
CAUTION: Check that the running channel - front door is securely fixed to the panel assembly - front door and to the sash assembly - partition.

Tightening torque:

Refer to "COMPONENT" of "General Description". Ref. to GLASS/WINDOWS/MIRRORS>General Description>COMPONENT>FRONT DOOR GLASS .

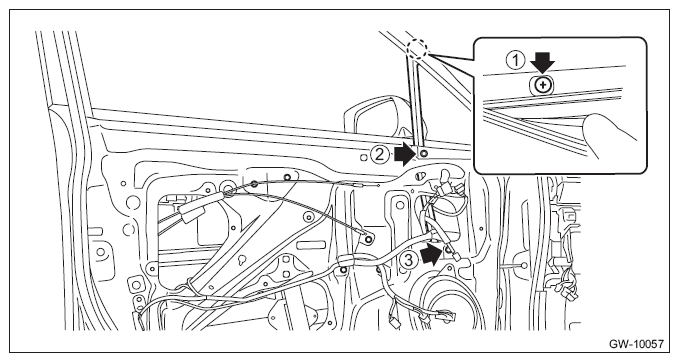

NOTE: Tighten the sash assembly - partition in the following order.

Courtesy of SUBARU OF AMERICA, INC.
Install the glass assembly - front door.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the front door inner pad.
Install the sealing cover - front door.
Install the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
