Rear Regulator And Motor Assembly: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>REAR DOOR .
  3. Remove the sealing cover - rear door.
  4. Remove the glass assembly - rear door. Ref. to GLASS/WINDOWS/MIRRORS>Rear Door Glass>REMOVAL .
  5. Remove the rear regulator and motor assembly.

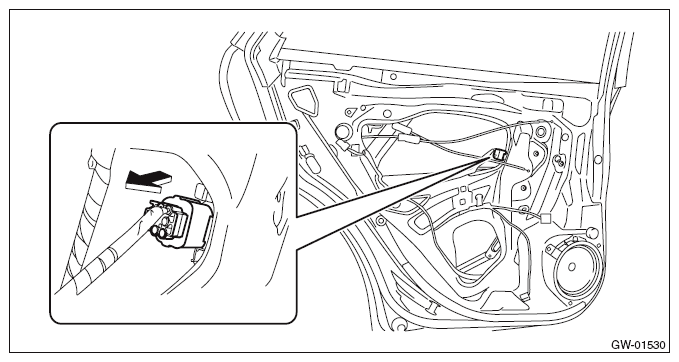

    1. Disconnect the connector of the motor - rear.
      G10272735Courtesy of SUBARU OF AMERICA, INC.

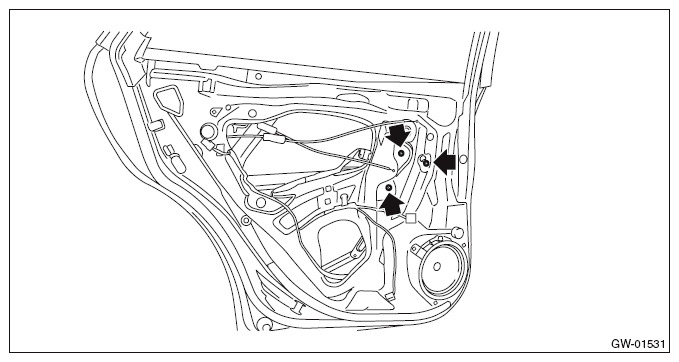

    2. Remove the bolts, and then remove the regulator and motor assembly - rear.
    G10272736Courtesy of SUBARU OF AMERICA, INC.
