Starting System & Charging System (H4DO): Starter: Installation

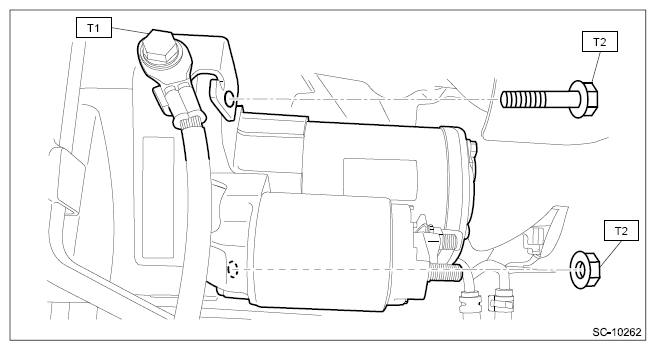

Install the starter and cable stay to the transmission, and connect the terminal to the cable stay.
Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) and terminal (B) to the starter.
Tightening torque:

11 N.m (1.1 kgf-m, 8.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
