Oil Pressure Switch: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

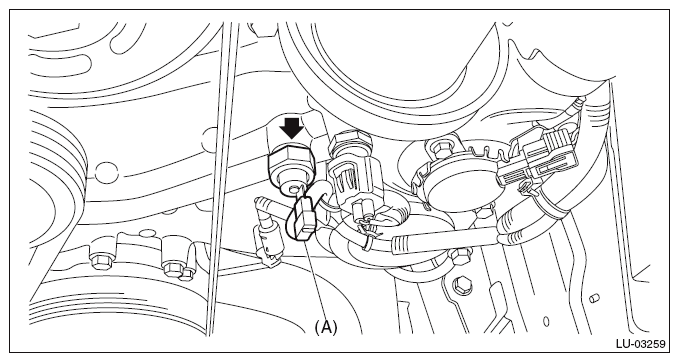

Disconnect the connector (A) from the oil pressure switch, and remove the oil pressure switch from the chain cover.
CAUTION: Catch the engine oil using cloth to prevent it from splashing.

Courtesy of SUBARU OF AMERICA, INC.
