Cylinder Block 1

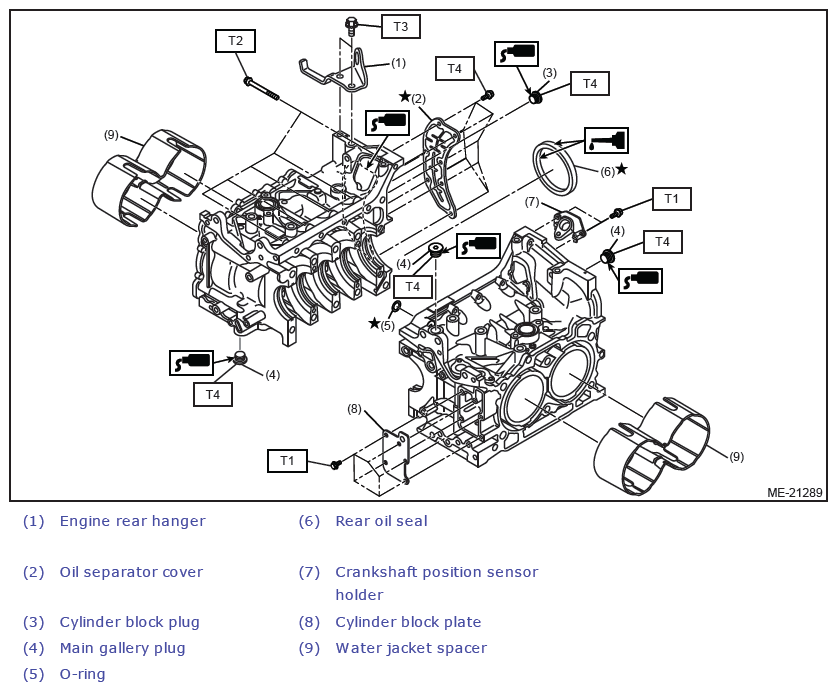

Fig 1: Cylinder Block 1 Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 25 (2.5, 18.4)

T3: 36 (3.7, 26.6)

T4:  Ref. to MECHANICAL(H4DO)>Cylinder Block>ASSEMBLY>CYLINDER BLOCK
