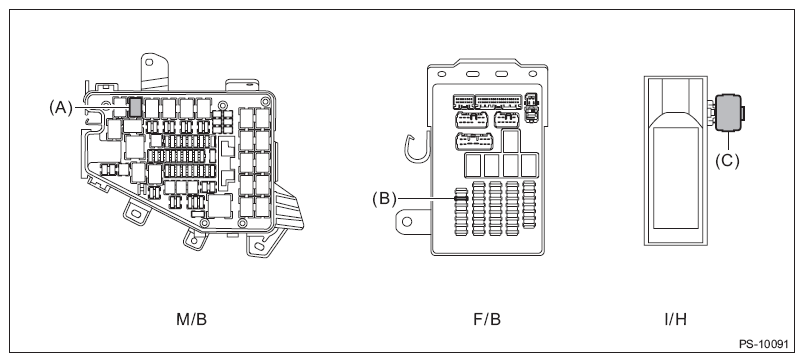

Relay and Fuse: Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box (M/B)	SBF fuse 80 A (power steering Control Module)	(A)
Fuse & relay box (F/B)	Fuse 7.5 A (power steering Control Module)	(B)
Instrument panel harness holder (I/H)	Steering heater relay	(C)
