Front Arm: Removal

Lift up the vehicle, and then remove the front wheels.
Remove the under cover - front. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .

Remove the front arm.

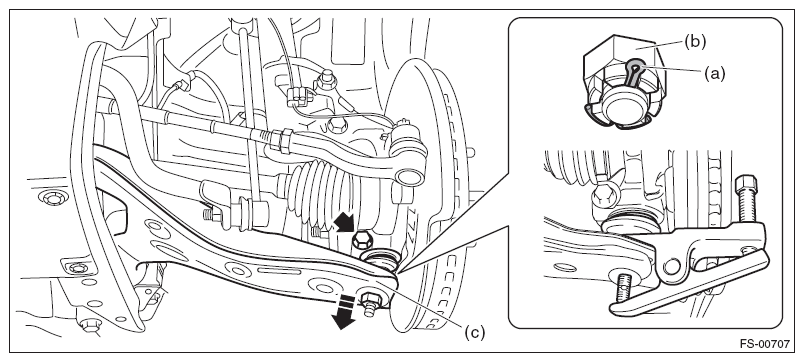

Pull out the cotter pin (a).
Remove the castle nut (b) and bolt.

Extract the front arm (c) from the housing - front axle.

CAUTION: Use a tool appropriate to the structure, and be careful not to damage the boot of the joint while removing. The boot may be damaged depending on the tool used.

Preparation tool:

Tie-rod ball joint puller

Courtesy of SUBARU OF AMERICA, INC.

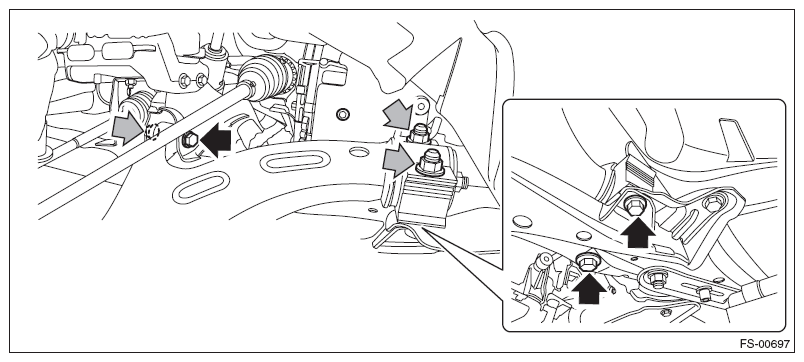

Remove the bolts, then remove the front arm.

Courtesy of SUBARU OF AMERICA, INC.
