Front Camber

  1. Adjust the camber angle to the following value.
    Tire size Camber (difference between RH and LH 35' or less)
    Sedan model 225/55R17
    225/50R18    		 -0°15'±0°30'
    OUTBACK model 225/65R17
    225/60R18    		 -0°00'±0°30'
  2. Loosen the two flange nuts while holding the strut bolts.

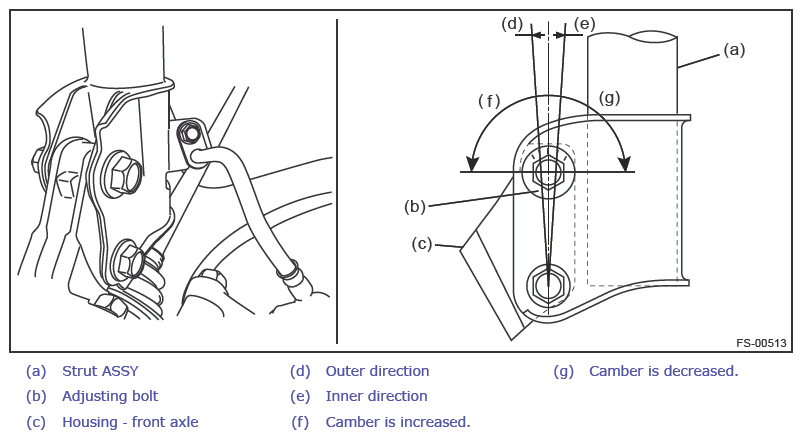

  3. Turn the camber adjusting bolt so that the camber is set at specification.
    NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°10'.
    G12405945Courtesy of SUBARU OF AMERICA, INC.
    To decrease camber.
    Rotate the left side clockwise. Rotate the right side counterclockwise.
    G10276578Courtesy of SUBARU OF AMERICA, INC.
    G10276579Courtesy of SUBARU OF AMERICA, INC.
    To decrease camber.
    Rotate the left side clockwise. Rotate the right side counterclockwise.
    G10276579Courtesy of SUBARU OF AMERICA, INC.
    G10276578Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten two new flange nuts.

    Tightening torque:

    155 N.m (15.8 kgf-m, 114.3 ft-lb)

    NOTE: While holding the adjusting bolt side, tighten the nut side.
