Wheel Alignment: Inspection: Camber

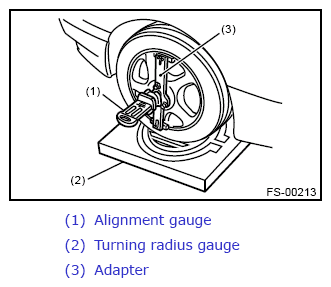

- Place the wheel on turning radius gauge.NOTE: Make sure the ground contact surfaces of the front and rear wheels are at the same height.
- Set the adapter into the center of wheel, and then set the wheel alignment gauge.
- Measure the camber angle in accordance with the operation manual for wheel alignment gauge accompanied with the gauge.
Tire size Camber (difference between RH and LH 45' or less) Front Rear Sedan model 225/55R17
225/50R18-0°15'±0°45' -1°30'±0°45' OUTBACK model 225/65R17
225/60R18-0°00'±0°45' -1°00'±0°45'
