Front Lateral Link: Assembly

1. Before assembly, inspect the following items and replace any faulty part with a new one.
   • Visually check the lateral link assembly - front for damage and deformation.
   • Visually check the bushing for abnormal cracks, fatigue or damage.
   • Visually check the dust cover on the ball joint for damage.

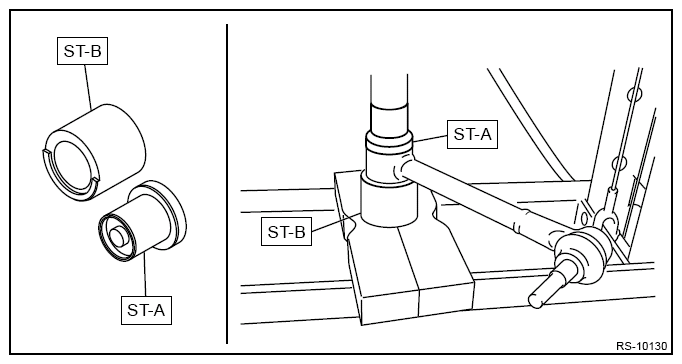

2. Using the ST, press the bushing into place.
   CAUTION: Make sure to press the bushing straight in.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20099AE000)

Courtesy of SUBARU OF AMERICA, INC.
