Rear Alignment (Inspection Value)

Sedan model

Tire size		225/55R17 225/50R18
Wheel arch height (Tolerance: ^{+12 mm}_{-24 mm} (^{+0.47 in}_{-0.94 in} ))	mm (in)	383 (15.08)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		-1°30'
Toe-in	mm (in)	0±3 (0±0.12) Toe angle (sum of both wheels): 0°00'±0°15'
Thrust angle (tolerance: ±0°30')		0°00'

OUTBACK model

Tire size		225/65R17 225/60R18
Wheel arch height (Tolerance: ^{+12 mm}_{-24 mm} (^{+0.47 in}_{-0.94 in} ))	mm (in)	468 (18.43)
Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less)		-1°00'
Toe-in	mm (in)	0±3 (0±0.12) Toe angle (sum of both wheels): 0°00'±0°14'
Thrust angle (tolerance: ±0°30')		0°00'

NOTE:

Adjust with the value less than the inspection value, taking aging variation into consideration.
Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.
If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.

Courtesy of SUBARU OF AMERICA, INC.

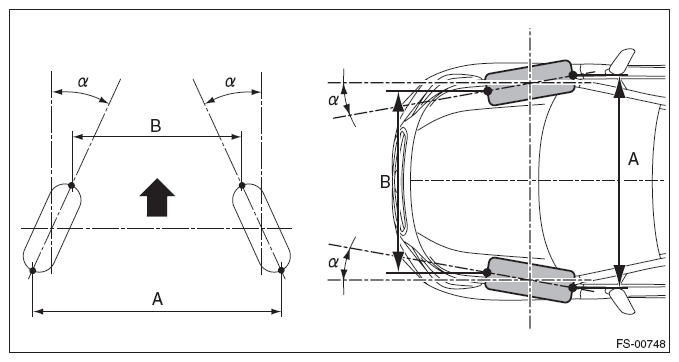

A - B = Positive: Toe-in, Negative: Toe-out

a = Individual toe angles
