Differential Case Assembly

Remove the taper roller bearing using the ST.
ST1 498077000 REMOVER

ST2 899864100 REMOVER

ST3 398497701 SEAT

Courtesy of SUBARU OF AMERICA, INC.
Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

Courtesy of SUBARU OF AMERICA, INC.
Remove the differential case (LH).

Courtesy of SUBARU OF AMERICA, INC.
Remove the differential bevel gear and washer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the straight pin.

Courtesy of SUBARU OF AMERICA, INC.

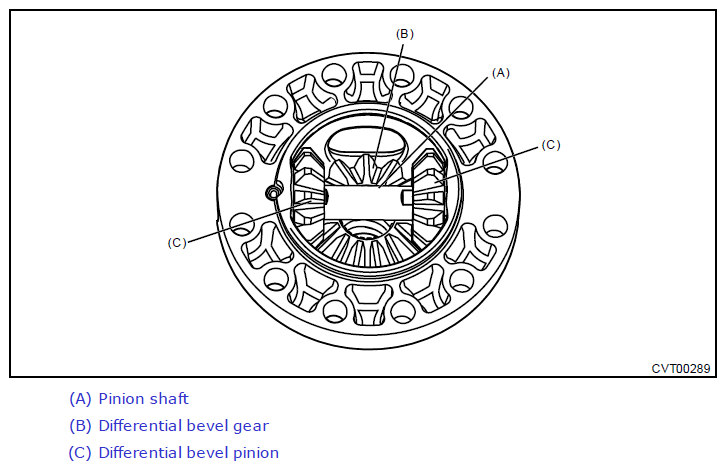

Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

Courtesy of SUBARU OF AMERICA, INC.
