Inhibitor Switch: Installation

  1. Install the inhibitor switch to the transmission case temporarily.
    G10218584Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector.
  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.

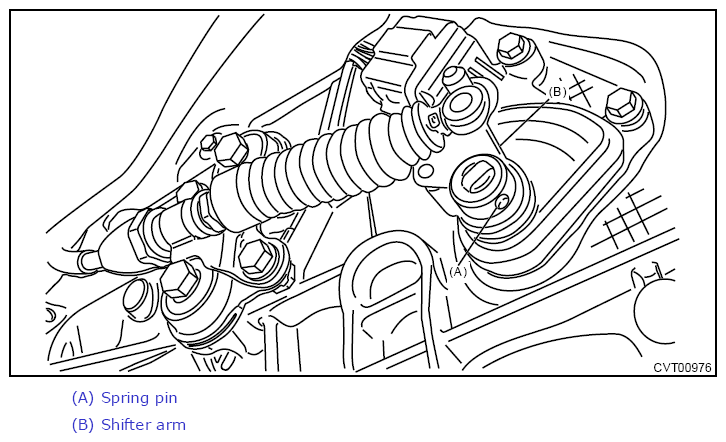

    G12407236Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.
  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

    ST 499267300 STOPPER PIN

    G10218581Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

  7. Install the select cable to the shifter arm.
  8. Install the washer and snap pin.
    CAUTION: Do not apply extra overload while holding the part (a).

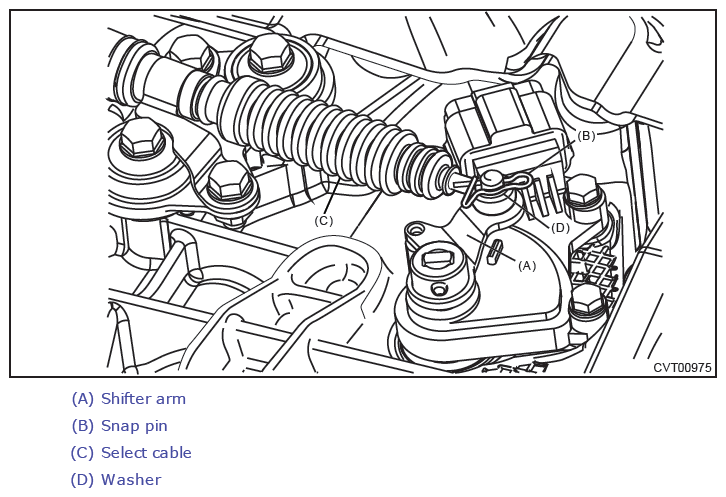

    G12392796Courtesy of SUBARU OF AMERICA, INC.
    G12407239Courtesy of SUBARU OF AMERICA, INC.
  9. Install the center exhaust pipe. Ref. to EXHAUST(H4DO)>Center Exhaust Pipe>INSTALLATION .
  10. Lower the vehicle.
  11. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  12. Check the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Inhibitor Switch>INSPECTION .
