Preparation For Overhaul: Procedure

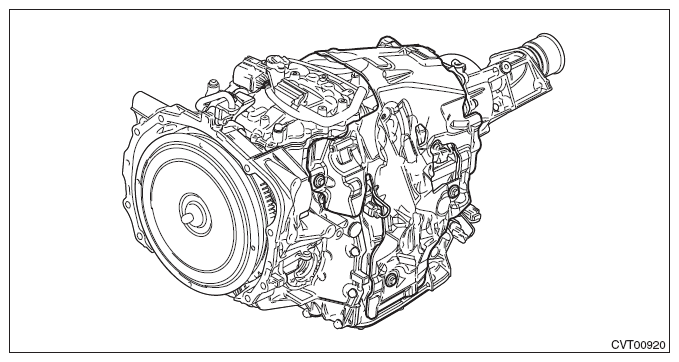

Clean the transmission exterior.

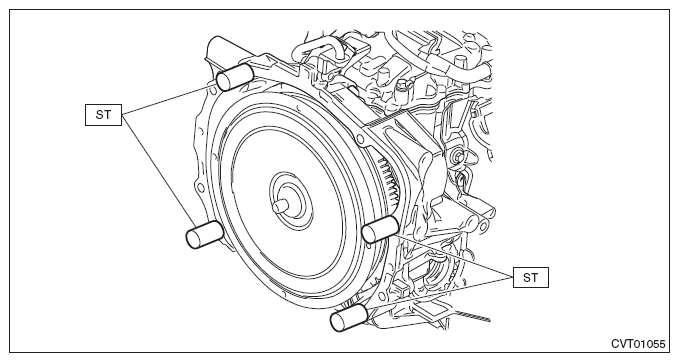

Attach the ST on the transmission assembly.
ST 18632AA000 STAND ASSY

Courtesy of SUBARU OF AMERICA, INC.
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TORQUE CONVERTER ASSEMBLY .
Remove the transmission case cover on the transmission upper side.
NOTE: Install using the following tightening torque.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.

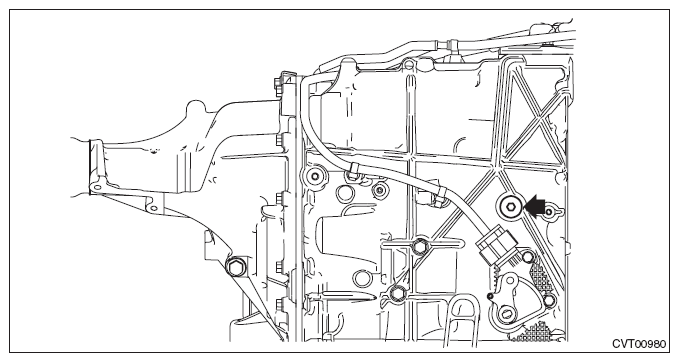

When completely overhauling the transmission, refill approx. 10 L (2.6 US qt, 8.8 Imp qt) of CVTF through the transmission right side plug, and install the plug. Then, install the transmission case cover.
CAUTION: Always use specified CVTF. Using other fluid will cause malfunction. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>General Description>SPECIFICATION>HYDRAULIC CONTROL AND LUBRICATION .

NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
