Primary Speed Sensor: Inspection

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the clip (A), and loosen the clamps (B) and (C).

Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

Courtesy of SUBARU OF AMERICA, INC.

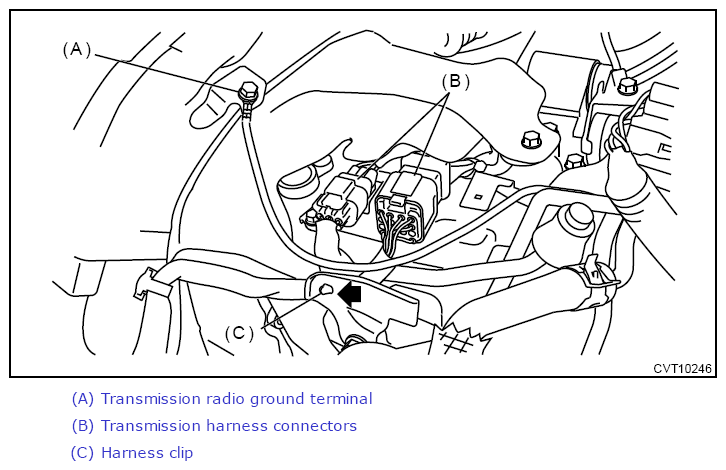

Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission case cover.

Courtesy of SUBARU OF AMERICA, INC.

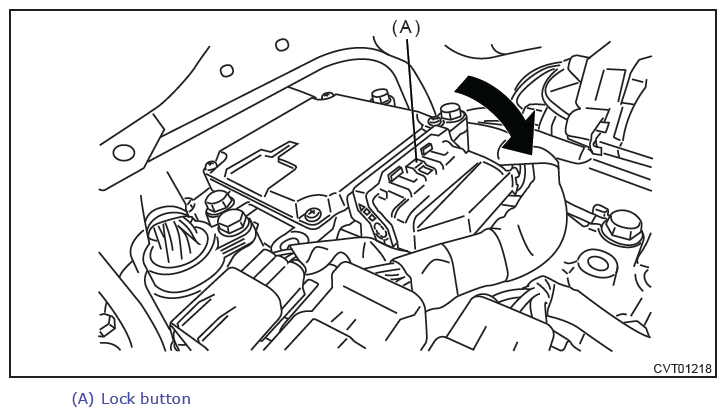

Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Set the ST between TCM and transmission harness. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (DIAGNOSTICS)>General Description>CAUTION .
ST 18460AA040 CHECK BOARD
Connect the transmission radio ground terminal and transmission harness connector, and install the harness clip.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)
Install the air intake boot assembly. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Boot>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Set the probe of oscilloscope to the check board connector.
Connector & terminal:

(B54) No. 14 (+) - No. 42 (-):

Courtesy of SUBARU OF AMERICA, INC.
Start and warm up the engine.
Lift up the vehicle.
CAUTION: Lift up the vehicle until the tire bottom is 0.3 m (0.98 ft) or more above the ground.
Shift the select lever to "D" range.
Check the waveform and output voltage of the primary speed sensor with engine idling.
NOTE: The waveform cycle changes as the speed changes.

Courtesy of SUBARU OF AMERICA, INC.
