Relay And Fuse: Location

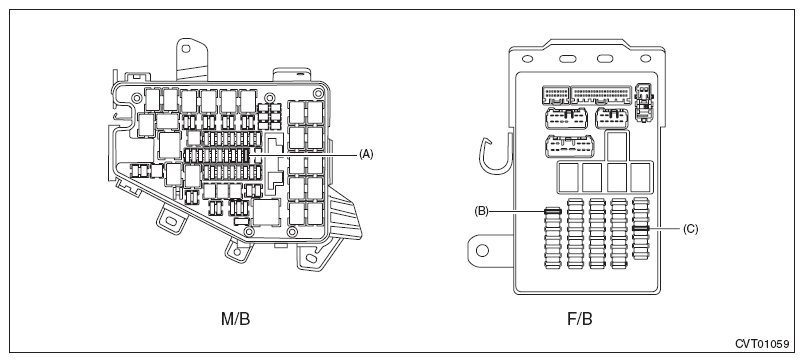

G10275072Courtesy of SUBARU OF AMERICA, INC.
Main fuse box Fuse 20 A (A)
Relay & fuse box Fuse 15 A (B)
Relay & fuse box Fuse 7.5 A (C)
