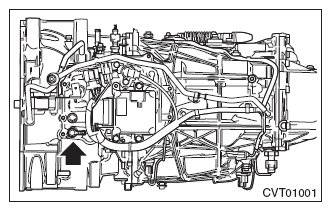

Transmission Ground

Make sure that the ground terminal bolt is tightened securely.

Tightening torque:

ENGINE TYPE FB

14 N.m (1.4 kgf-m, 10.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

ENGINE TYPE EZ

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
