Subaru
›
2018
›
Outback 3.6R Limited
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control/Fuel System (H6DO)
›
General Description
›
Components With Torque Specifications
›
Engine Harness
›

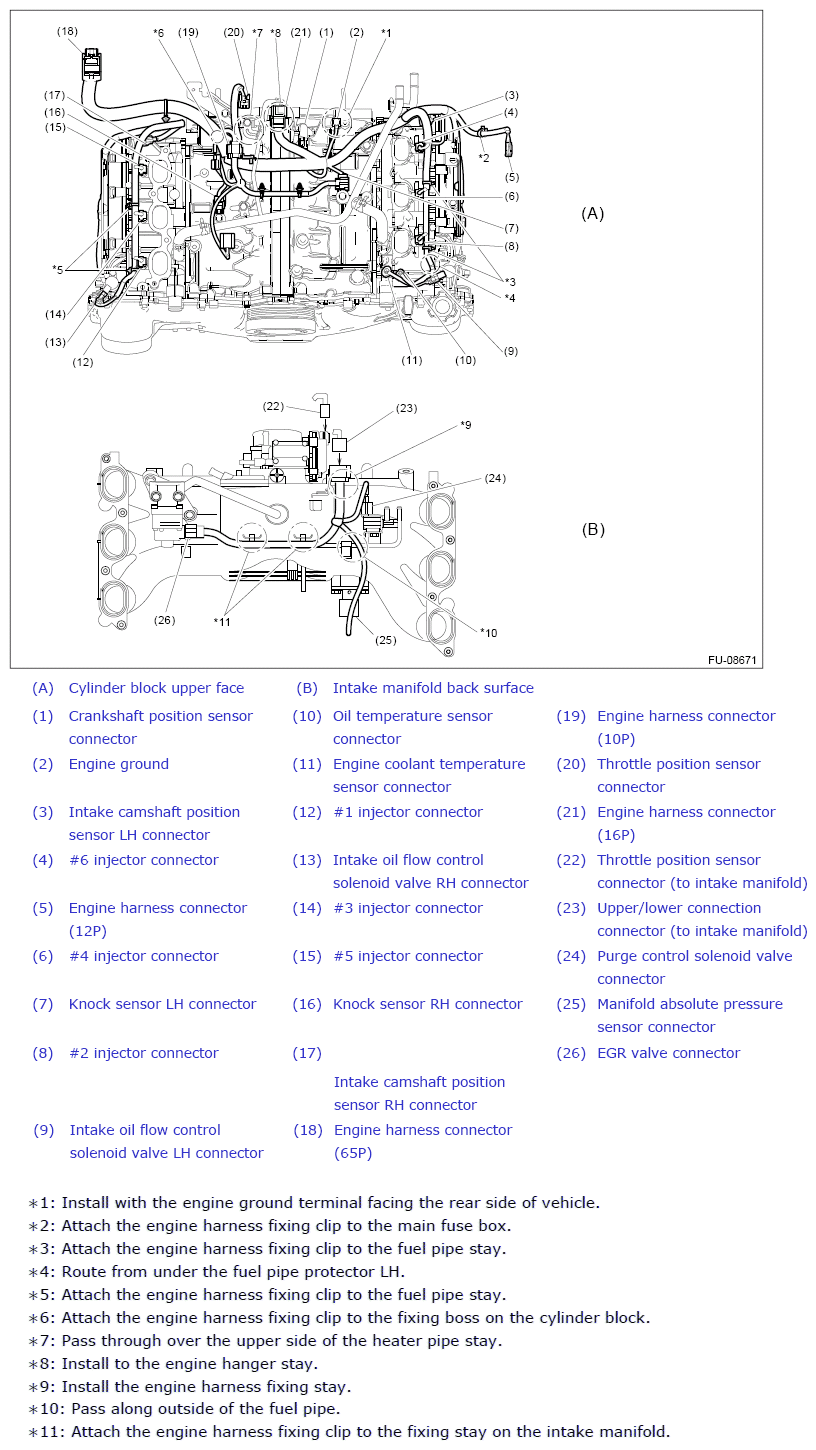

Engine harness assembly diagram 1
Engine harness assembly diagram 1
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
