Forward Clutch Assembly: Assembly

Install the forward clutch piston to forward clutch drum.
NOTE:
- Apply CVTF to the seal of forward clutch piston.
- Insert it all the way to the end.
Courtesy of SUBARU OF AMERICA, INC.
Install the return spring.

Courtesy of SUBARU OF AMERICA, INC.
Install the forward clutch piston retainer.
NOTE: Apply CVTF to the sealing portion of the forward clutch piston retainer.

Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST to install the snap ring.
ST 18762AA001 COMPRESSOR SPECIAL TOOL

Courtesy of SUBARU OF AMERICA, INC.
Install the thrust needle bearing.
NOTE: Install the thrust needle bearing in the correct direction.

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.
Measure the height "A" from the ST end surface to the snap ring of forward clutch drum using the ST on the surface plate.
NOTE:
- Measure while lifting the snap ring.
- Place the measurement tool at the dent on ST upper side to measure.
ST1 499737100 PULLER SET

ST2 499575600 GAUGE

Courtesy of SUBARU OF AMERICA, INC.
Measure height "B" from the ST end surface to the thrust needle bearing using the ST.
NOTE: Place the measurement tool at the dent on ST upper side to measure.

ST1 499737100 PULLER SET

ST2 499575600 GAUGE

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

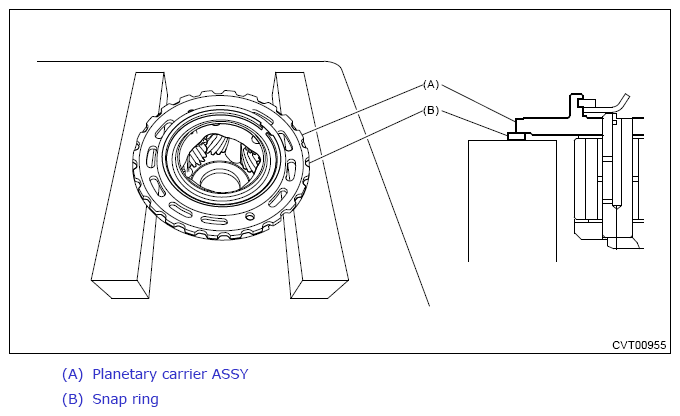

Place flat boards on the surface plate, and place the snap ring and then planetary carrier assembly overlapping neatly.
NOTE: Carefully place them so that the most outer finished surface of planetary carrier assembly overlaps the snap ring.

Courtesy of SUBARU OF AMERICA, INC.
Install the thrust needle bearing.
NOTE: Make sure to install in the right direction.

Courtesy of SUBARU OF AMERICA, INC.
Install the sun gear.
NOTE: Make sure to install in the right direction.

Courtesy of SUBARU OF AMERICA, INC.
Install the forward clutch hub.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, measure the height "C" from the ST end surface to the flat board with the snap ring placed on.
NOTE: Place the measurement tool at the dent on ST upper side to measure.

ST 499737100 PULLER SET

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, measure the height "D" from the ST end surface to the washer catch surface of the forward clutch hub.
NOTE: Place the measurement tool at the dent on ST upper side to measure.

ST 499737100 PULLER SET

Courtesy of SUBARU OF AMERICA, INC.
Obtain the thickness of washer using the values measured from step 7) to step 15).
Calculation formula:

T mm = (B - A) - (C - D) - (0.0 - 0.20)

[T in = (B - A) - (C - D) - (0.0 - 0.008)]

T: Washer thickness

A: Height from the ST end surface to the snap ring of the forward clutch drum

B: Height from the ST end surface to the thrust needle bearing

C: Height from the ST end surface to the flat board with the snap ring placed on

D: Height from the ST end surface to the washer catch surface of the forward clutch hub

0.0 - 0.20 mm (0.0 - 0.008 in): Clearance

Select the washer to meet the value "T" obtained from step 16).

Washer
Part No.	Thickness mm (in)
31598AA090	4.7 (0.185)
31598AA100	4.8 (0.189)
31598AA110	4.9 (0.193)
31598AA060	5.0 (0.197)
31598AA120	5.1 (0.201)
31598AA130	5.2 (0.205)
31598AA140	5.3 (0.209)

Install the dish plate, drive plate, driven plate and retaining plate.

Courtesy of SUBARU OF AMERICA, INC.
Install the planetary carrier assembly.

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.

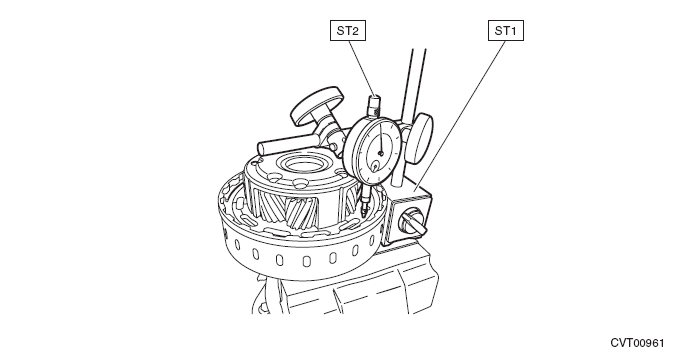

Hold the forward clutch drum on a vise, and set the ST.
ST1 498247001 MAGNET BASE

ST2 498247100 DIAL GAUGE

Courtesy of SUBARU OF AMERICA, INC.

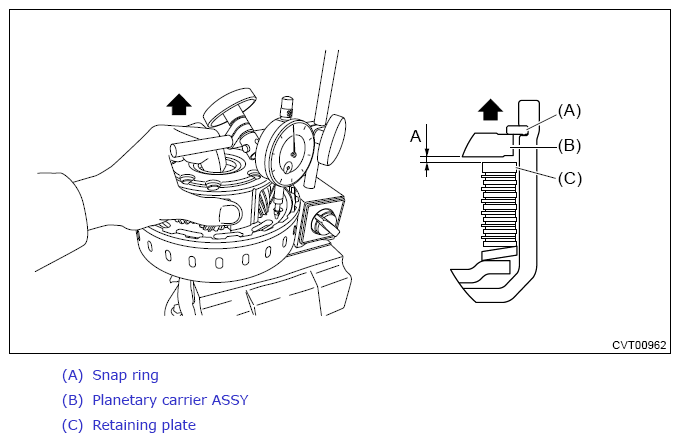

Lift the planetary carrier assembly, and read the value "A" indicated on the dial gauge.
NOTE: Measure at four points with a 90° interval and calculate the average.

Courtesy of SUBARU OF AMERICA, INC.

If the value "A" obtained from step 22) exceeds the limit for use, replace the drive plate and driven plate with new parts and select the retaining plate within the initial standard value.

Initial standard:

1.2 - 1.6 mm (0.047 - 0.063 in)

Limit thickness:

2.4 mm (0.09 in)

Retaining plate
Part No.	Thickness mm (in)
31567AB890	2.0 (0.079)
31567AB900	2.2 (0.087)
31567AB910	2.4 (0.094)
31567AB640	2.6 (0.102)

Remove the snap ring and the planetary carrier assembly.
Replace with the retaining plate selected in step 23) to install.
Install the thrust needle bearing.
NOTE: Install the thrust needle bearing in the correct direction.

Courtesy of SUBARU OF AMERICA, INC.
Install the washer selected in step 17).

Courtesy of SUBARU OF AMERICA, INC.
Install the forward clutch hub.

Courtesy of SUBARU OF AMERICA, INC.
Install the sun gear.

Courtesy of SUBARU OF AMERICA, INC.
Install the thrust needle bearing.
NOTE: Install the thrust needle bearing in the correct direction.

Courtesy of SUBARU OF AMERICA, INC.
Install the planetary carrier assembly.

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.
Install the thrust needle bearing.
NOTE: Install the thrust needle bearing in the correct direction.

Courtesy of SUBARU OF AMERICA, INC.
Install the thrust gear plate to the internal gear.

Courtesy of SUBARU OF AMERICA, INC.
Install the snap ring.

Courtesy of SUBARU OF AMERICA, INC.
Install the internal gear assembly.

Courtesy of SUBARU OF AMERICA, INC.
