Inhibitor Switch: Installation

Temporarily install the inhibitor switch.

Courtesy of SUBARU OF AMERICA, INC.
Connect the inhibitor harness connector to the inhibitor switch.

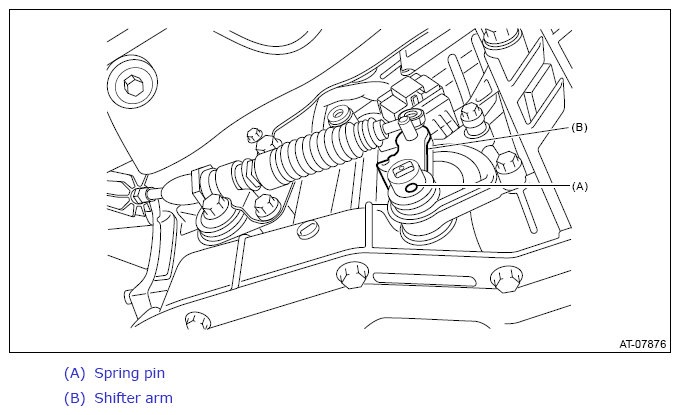

Install the shifter arm and fix with the spring pin.
NOTE: Use new spring pin.

Courtesy of SUBARU OF AMERICA, INC.
Shift the shifter arm to "N" range.
Install the ST vertically in the cutout of shifter arm and the hole of switch body.
ST 499267300 STOPPER PIN

Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

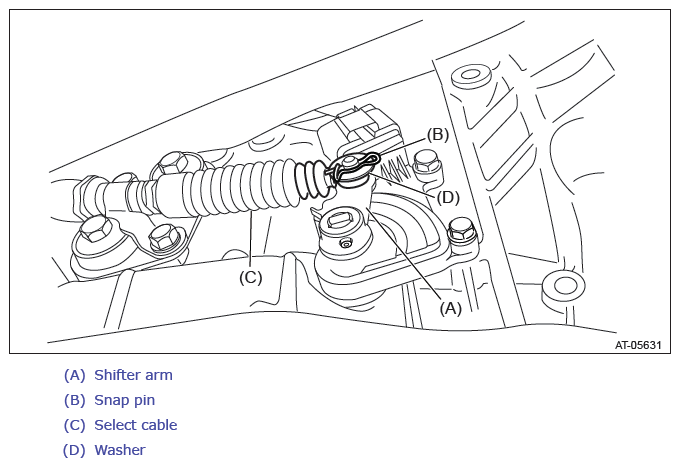

Connect the select cable and install the washer and snap pin.
CAUTION: Do not apply extra overload while holding the part (A).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

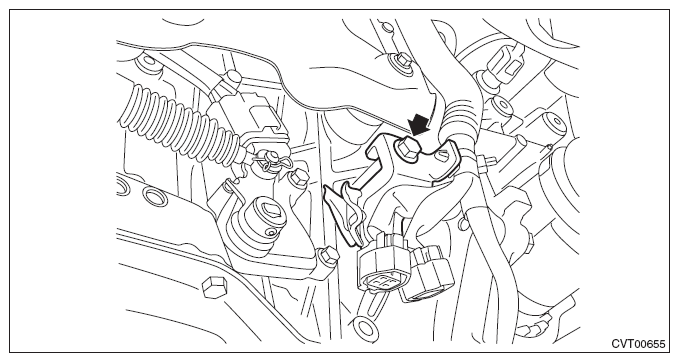

Install the harness stay.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST(H6DO)>Front Exhaust Pipe>INSTALLATION .
Lower the vehicle.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Check the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Inhibitor Switch>INSPECTION .
