Preparation For Overhaul: Procedure

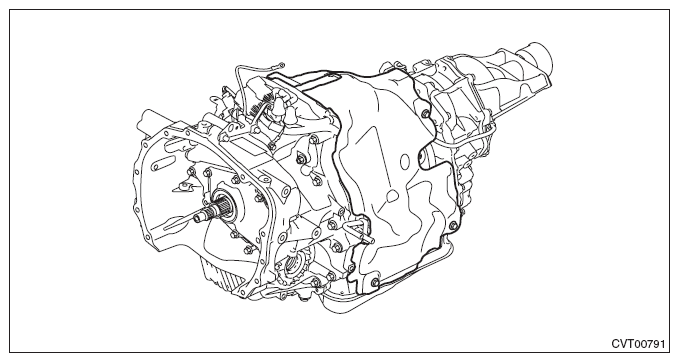

Clean the transmission exterior.
Remove the torque converter assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Torque Converter Assembly>REMOVAL .
Attach the ST on the transmission.
ST 18632AA000 STAND ASSY

Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission cover on the transmission upper side.
NOTE: Install using the following tightening torque.

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Place the transmission assembly on end.
