Continuously Variable Transmission (Diagnostics): Electrical Component Location: Location: Sensor

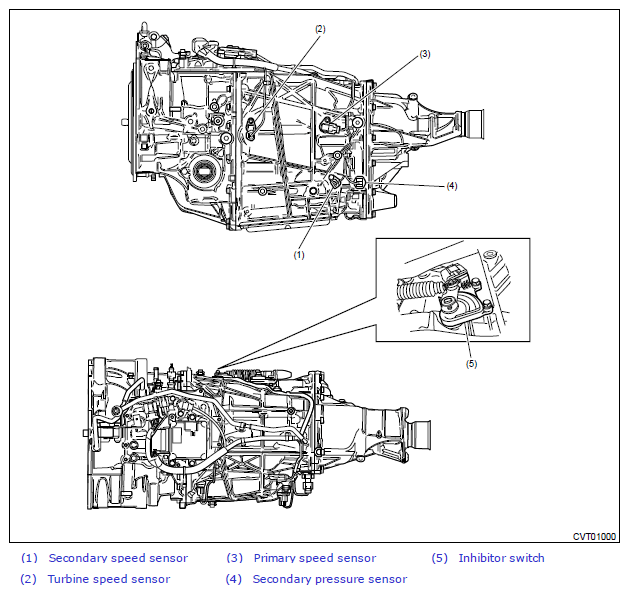

ENGINE TYPE FB
Courtesy of SUBARU OF AMERICA, INC.

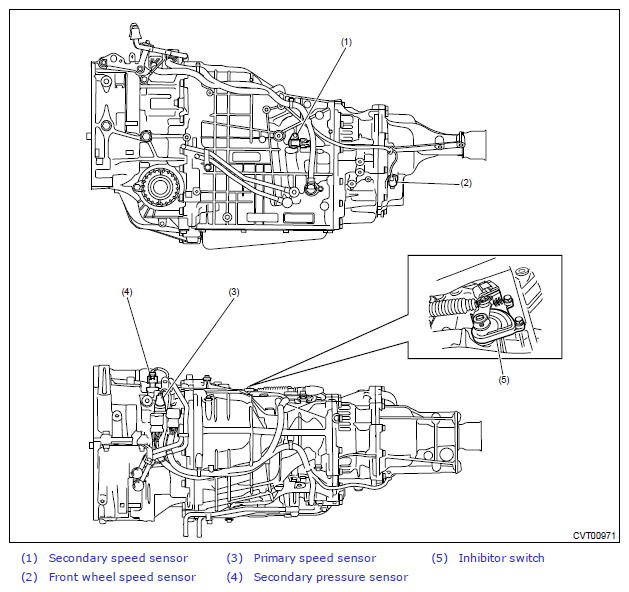

ENGINE TYPE EZ
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
