Trunk Lid Panel

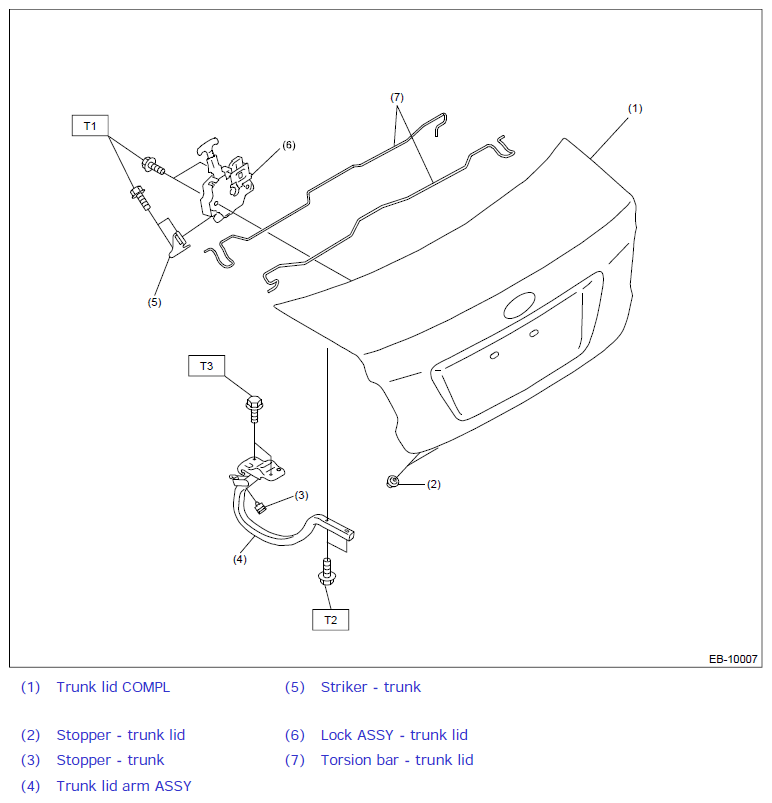

Fig 1: Exploded View Of Trunk Lid Panel Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 14 (1.4, 10.3)

T3: 18 (1.8, 13.3)
