Engine Mounting

WARNING: This page is about a different variant/trim than selected.

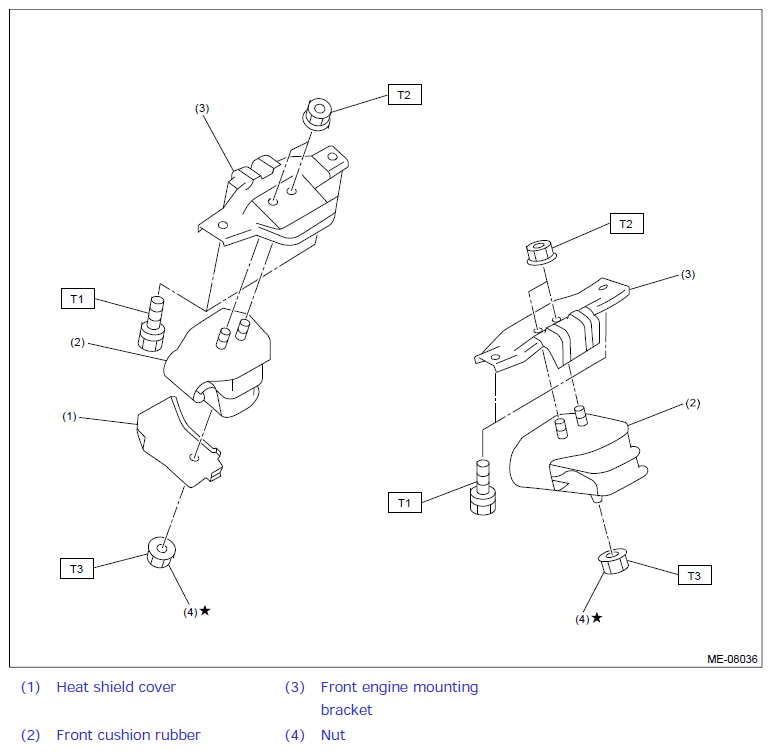

Fig 1: Exploded View Of Engine Mounting Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 35 (3.6, 25.8)

T2: 42 (4.3, 31.0)

T3: 60 (6.1, 44.3)
