AT Shift Lock Control System
›

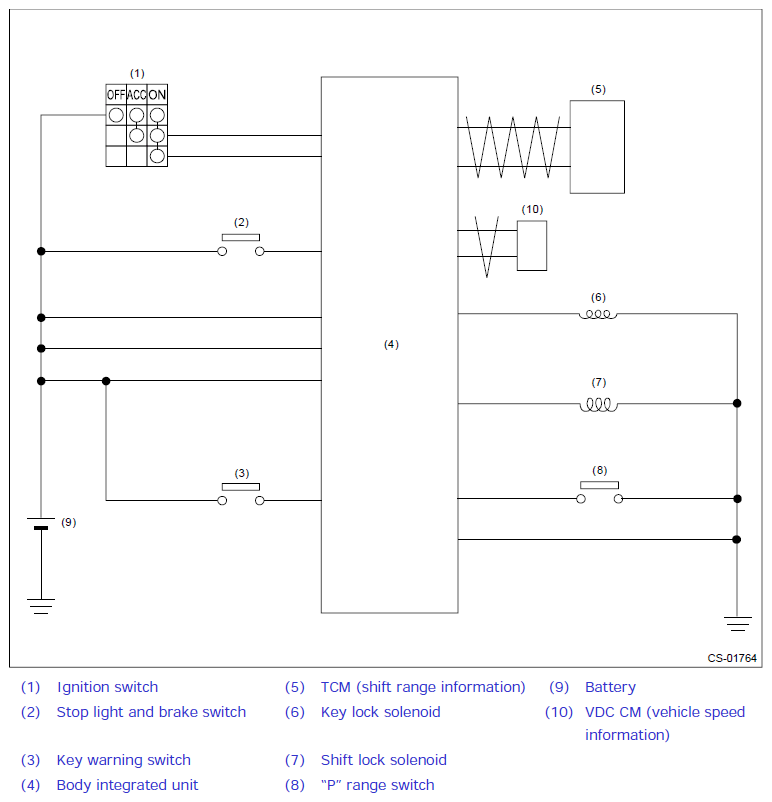

Wiring Diagram
›
Model Without Push Button Ignition Switch
Model Without Push Button Ignition Switch
