Home › Subaru › 2018 › WRX Base › Repair and Diagnosis › Transmission › M/T Clutch System › Release Bearing And Lever › Removal › Except For STI Model

Except For STI Model

  1. Remove the transmission assembly from the vehicle. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY75)>Manual Transmission Assembly>REMOVAL

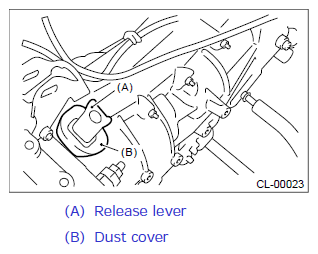

  2. Remove the dust cover.
    G12448507

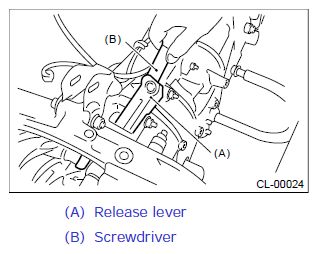

  3. Remove the attachment point of lever spring by inserting a screwdriver through the clutch housing release lever hole. Then remove the release lever together with the release bearing.
    G12448508
  4. Separate the release lever and the release bearing.
