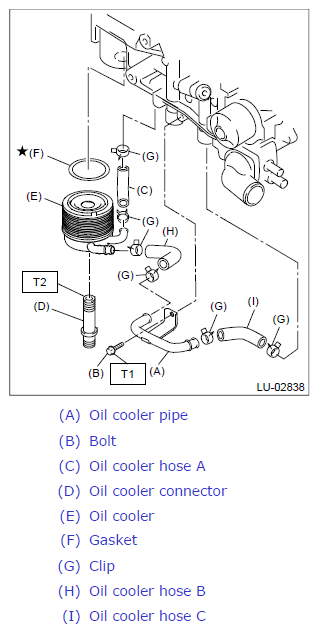

Installation With Torque Specification
Install in the reverse order of removal.
NOTE:
- Use a new gasket.
- After installing, check the engine oil level and replenish it if necessary. Ref. to LUBRICATION(STI)>Engine Oil>INSPECTION .
Tightening torque:
T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
T2: 54 N.m (5.5 kgf-m, 39.8 ft-lb)
