Camera Adjustment, Inspection: Procedure: Notes
CAUTION:
- Perform the camera adjustment and inspection at curb weight without passengers.
- Handle RANDOM CHART (ST) carefully so as not to break it with the adhesive force of the tape.

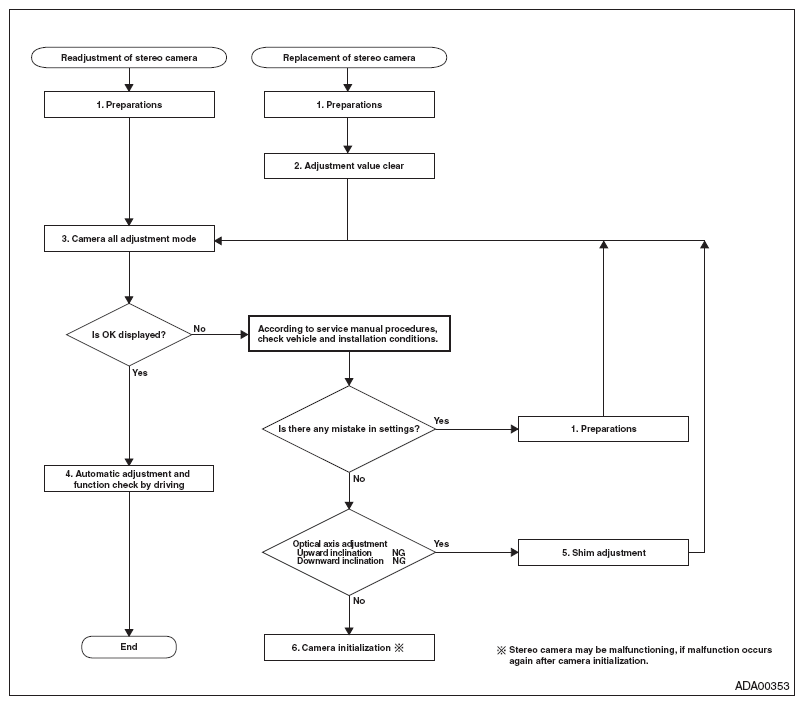

Perform inspection or adjustment according to the following procedures.
- Readjustment of stereo camera
Perform the adjustment in the following order: [1. Preparations] → [3. Camera all adjustment mode (replacement/removal)] → [4. Automatic adjustment and function check by driving].
- Replacement of stereo camera
Perform the replacement in the following order: [1. Preparations] → [2. Adjustment value clear] → [3. Camera all adjustment mode (replacement/removal)] → [4. Automatic adjustment and function check by driving].
NOTE:
When the stereo camera or windshield glass has been removed or installed, always perform readjustment of the stereo camera.
