Entertainment System: Camera: Removal: Front

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL .
  3. Remove the front view camera assembly.
    CAUTION: Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

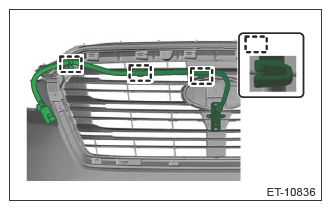

    1. Remove the cable clips.
      G13201895Courtesy of SUBARU OF AMERICA, INC.

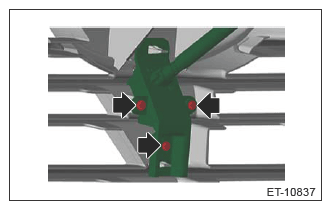

    2. Remove the screws and remove the front view camera assembly.
    G13201896Courtesy of SUBARU OF AMERICA, INC.
