Power Rear Gate Inner Switch: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
  2. Remove the power rear gate inner switch.

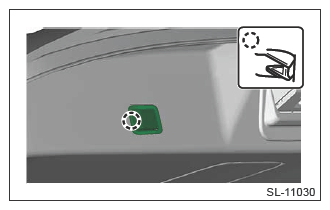

    1. Release the claws and pull out the power rear gate inner switch rearward.
      G13201774Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector and remove the power rear gate inner switch.
    NOTE:
    • Insert a flat tip screwdriver wrapped with protective tape into the slit on the left.
    • If replacing the power rear gate inner switch, remove the cap panel rear gate switch.
