Second-Row Seats

Courtesy of SUBARU OF AMERICA, INC.

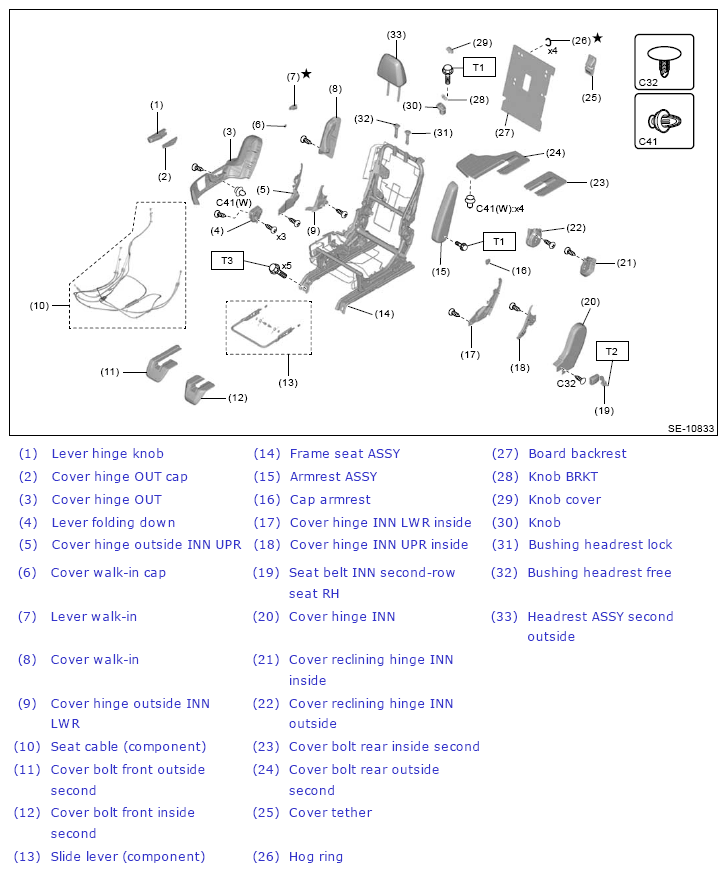

Fig 1: Exploded View Of Second-Row Seats - Bench Seat Type (RH Side) (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 53 (5.4, 39.1)

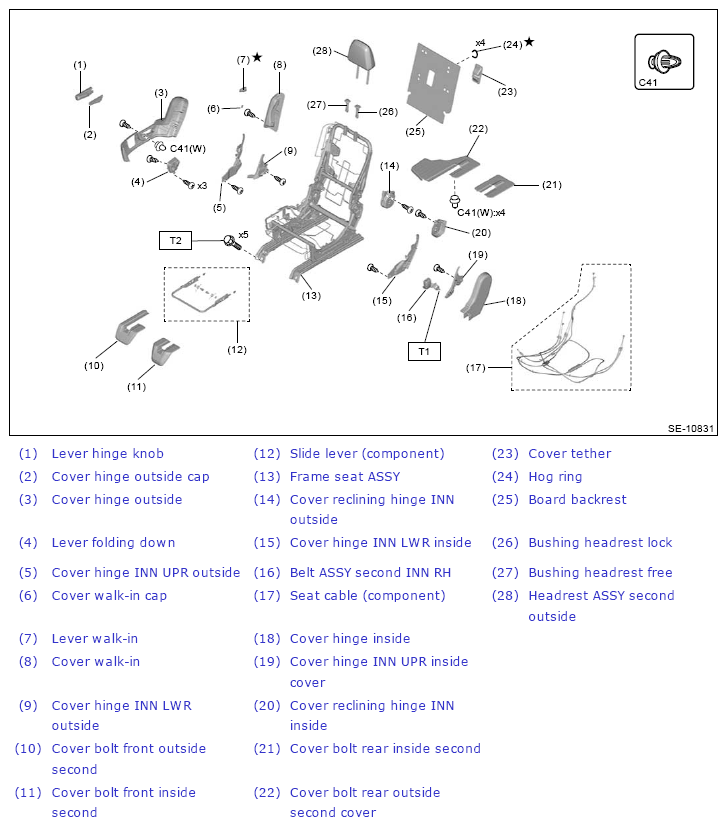

Fig 2: Exploded View Of Second-Row Seats - Bench Seat Type (LH Side) (With Tightening Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 33 (3.4, 24.3)

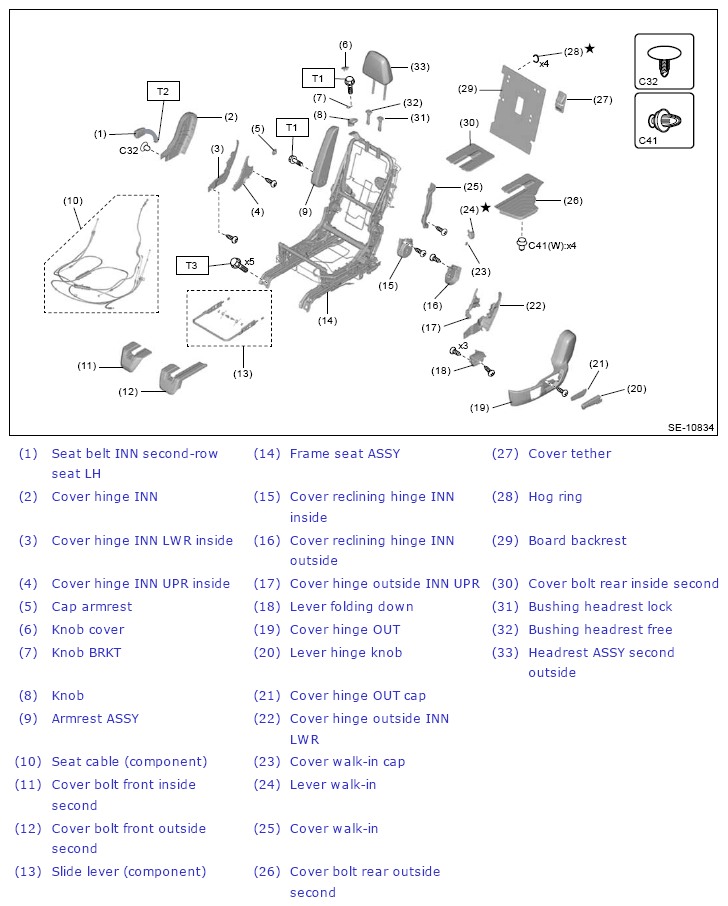

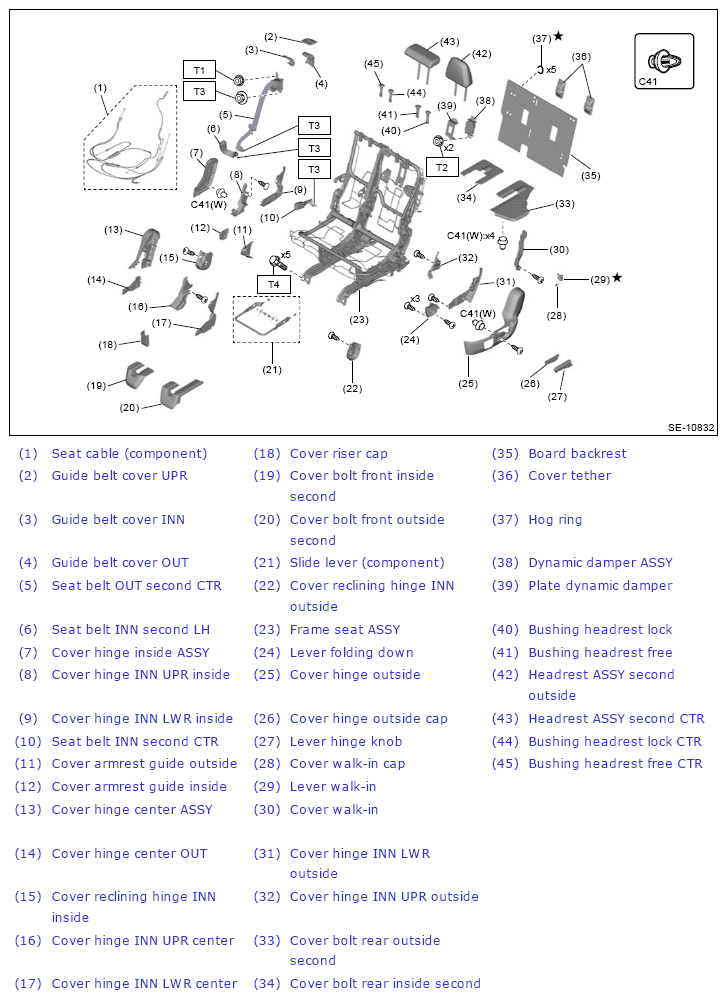

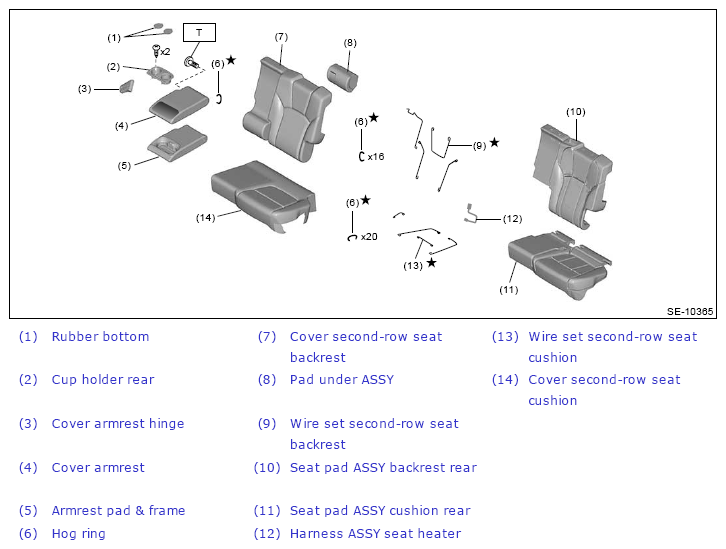

Fig 3: Exploded View Of Second-Row Seats - Bench Seat Type (LH Side) (With Tightening Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.9 (0.6, 4.4)

T2: 14.4 (1.4, 10.5)

T3: 30 (3.1, 22.1)

T4: 53 (5.4, 39.1)

Courtesy of SUBARU OF AMERICA, INC.

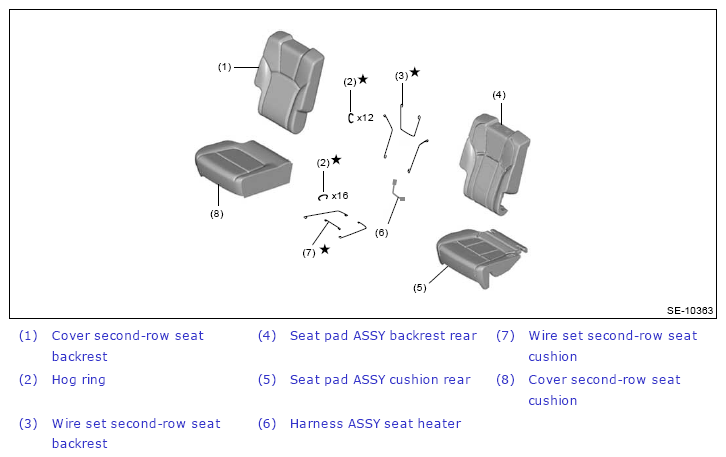

Fig 4: Exploded View Of Second-Row Seats - Captain Seat Type (RH Side) (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)

T3: 53 (5.1, 39.1)

Courtesy of SUBARU OF AMERICA, INC.

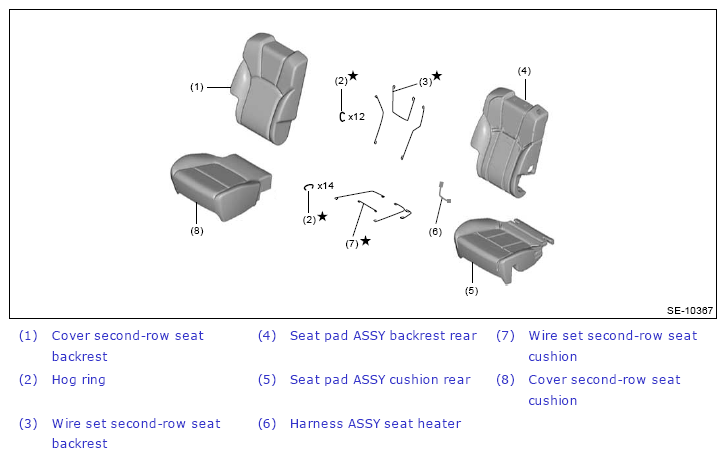

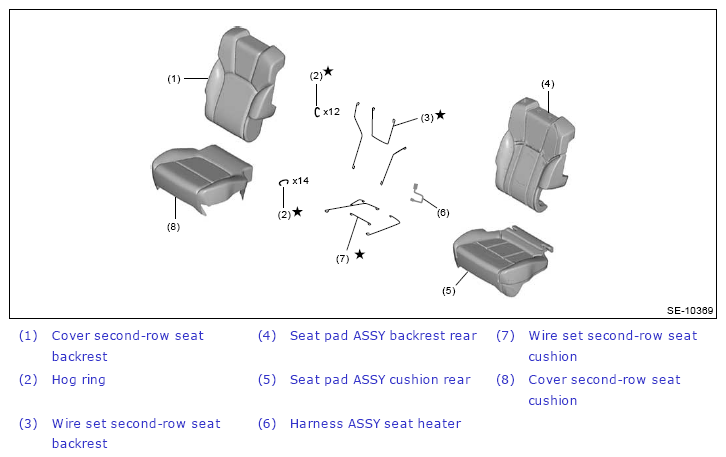

Fig 5: Exploded View Of Second-Row Seats - Captain Seat Type (LH Side) (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)

T3: 53 (5.1, 39.1)

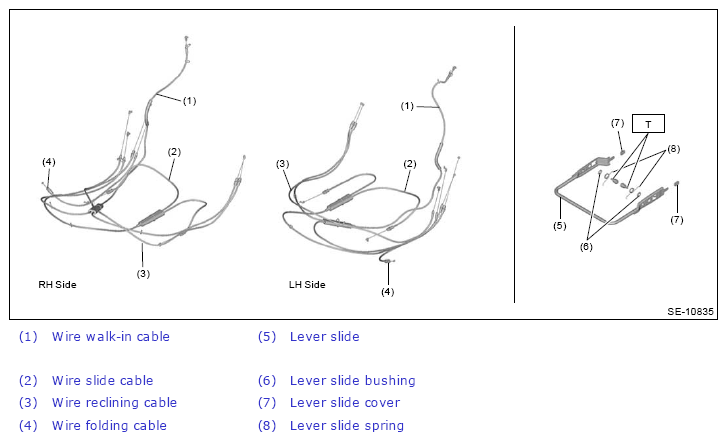

Fig 6: Exploded View Of Second-Row Seats - Wire Cable And Slide Lever (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 9.3 (0.9, 6.9)
