Scavenge Pump: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the crank sprocket. Ref. to MECHANICAL (H4DOTC)>CRANK SPROCKET>REMOVAL .
  3. Remove the oil jet.
    G13199176Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the scavenge pump.
    G13199177Courtesy of SUBARU OF AMERICA, INC.

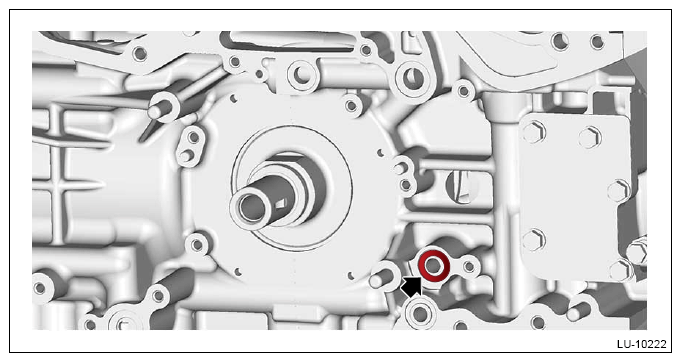

  5. Remove the O-rings.
    G13199178Courtesy of SUBARU OF AMERICA, INC.
