Oil Control Solenoid: Removal: Intake

• RH SIDE.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

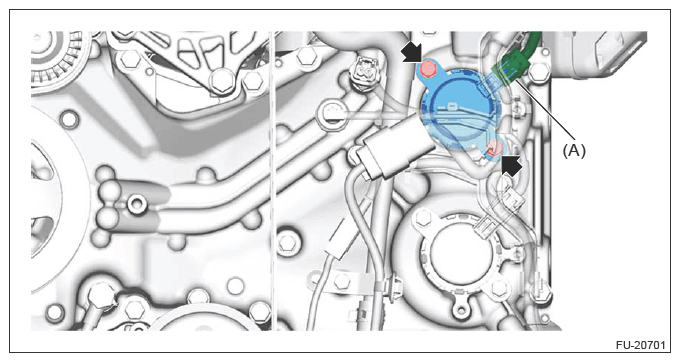

  3. Disconnect the connector (A) and remove the oil control solenoid.

  Courtesy of SUBARU OF AMERICA, INC.

• LH SIDE.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .

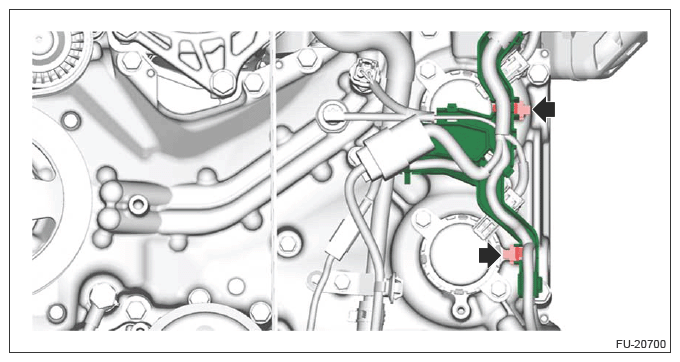

  3. Remove the clip securing the engine wiring harness.

     Courtesy of SUBARU OF AMERICA, INC.

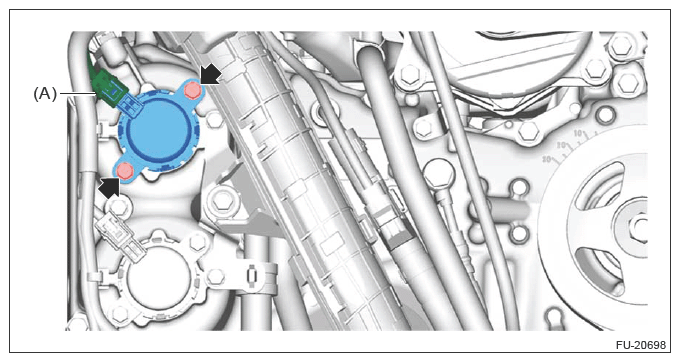

  4. Disconnect the connector (A) and remove the oil control solenoid.

Courtesy of SUBARU OF AMERICA, INC.
