Check List for Interview: Check

Inspect the following items regarding the vehicle's state.

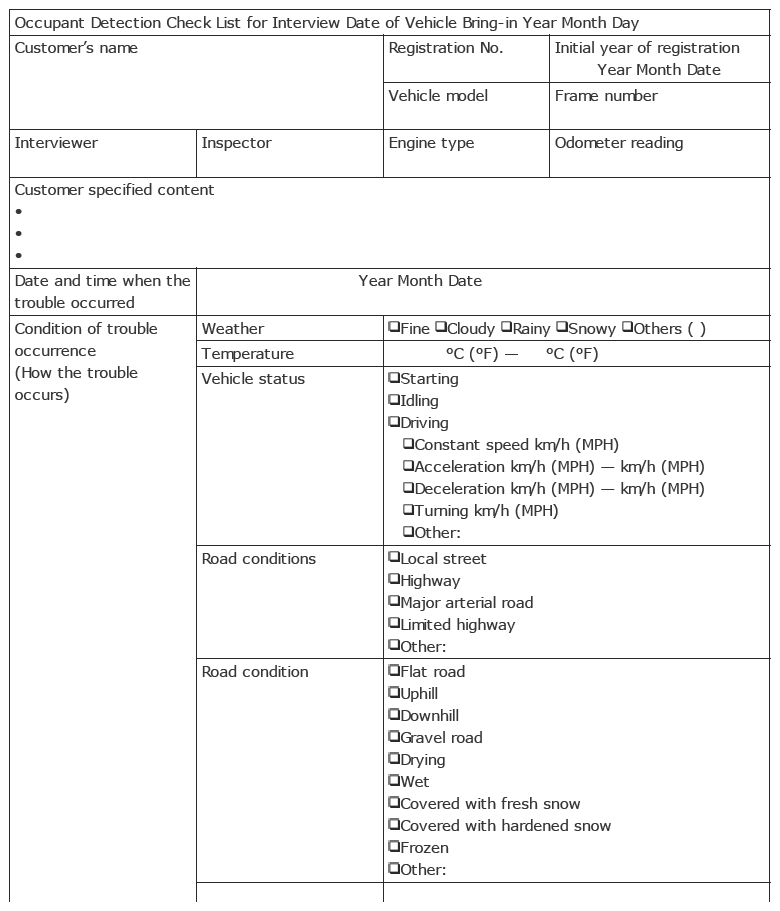

G13203060

Courtesy of SUBARU OF AMERICA, INC.

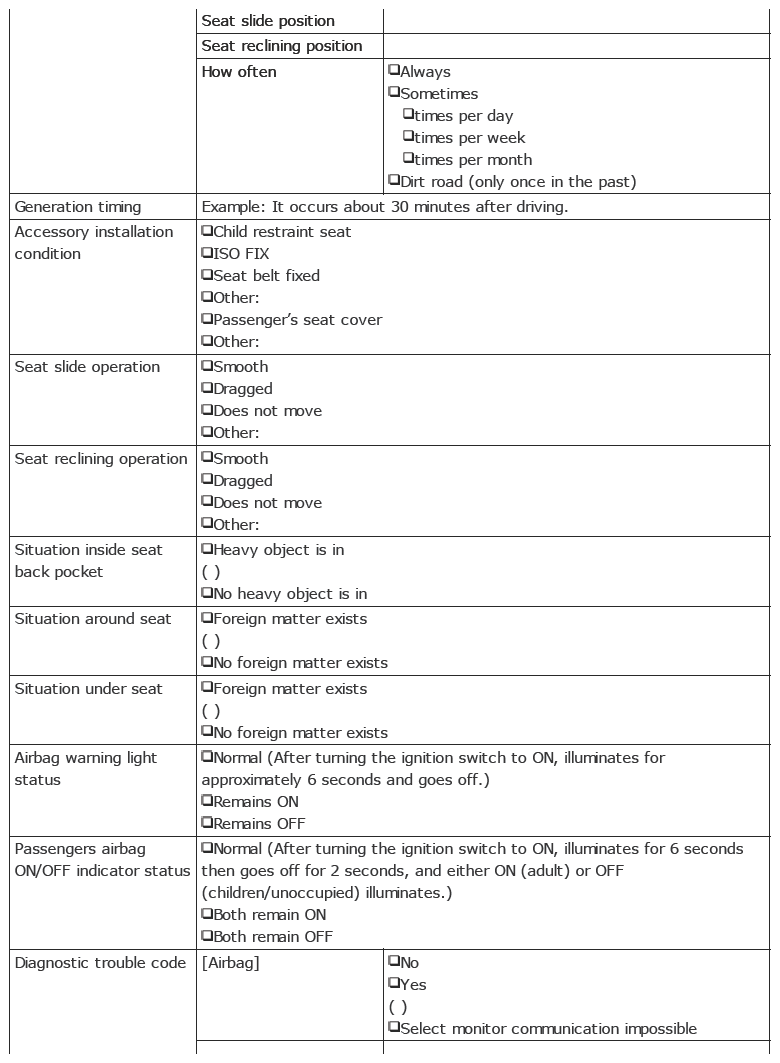

G13203061

Courtesy of SUBARU OF AMERICA, INC.

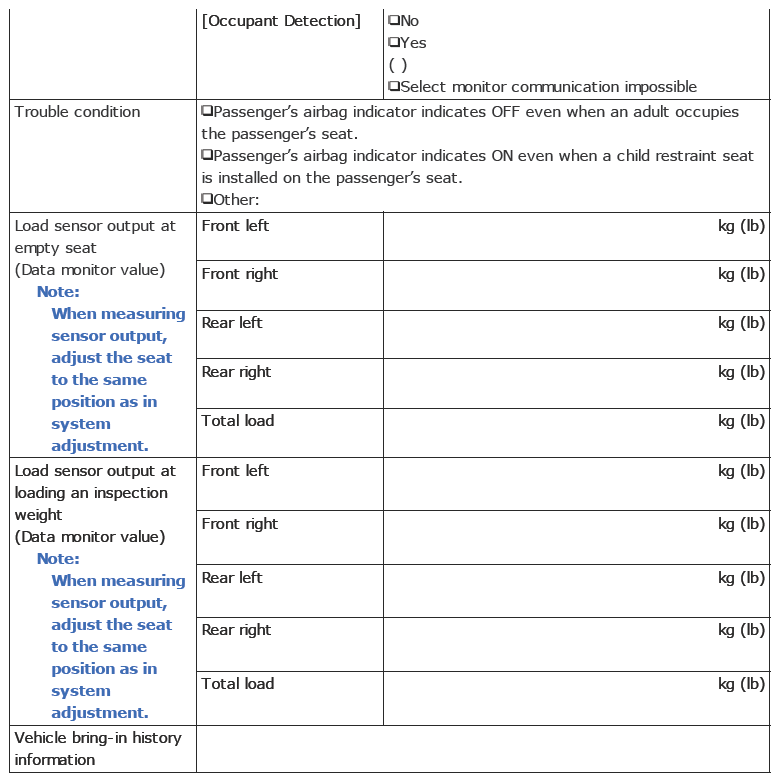

G13203062

Courtesy of SUBARU OF AMERICA, INC.
