Differential Gear Oil: Adjustment

NOTE: Though immediately after removing the overflow drain plug, differential gear oil (approx. 8 cc) remaining in the overflow pipe may come out, this does not indicate that the specified amount is reached. When removing the overflow drain plug, be sure to fill with the differential gear oil and check that the oil flows out of the overflow drain plug hole.

Lift up the vehicle.
Remove the oil charge pipe cap.

Courtesy of SUBARU OF AMERICA, INC.

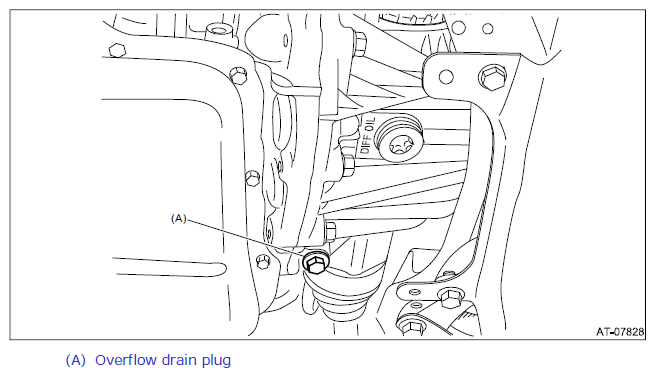

Remove the overflow drain plug.

Courtesy of SUBARU OF AMERICA, INC.

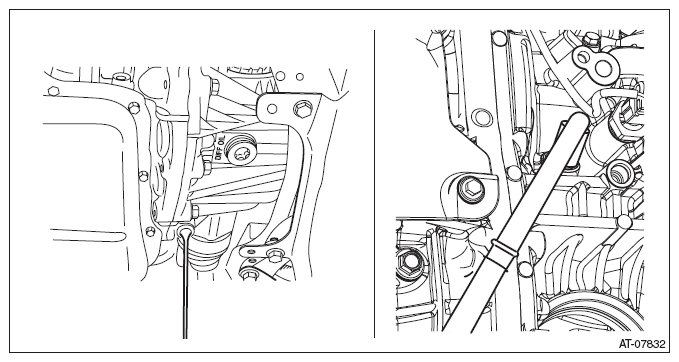

Fill with the differential gear oil through the oil charge pipe up to where the oil flows out of the overflow drain plug.
Recommended gear oil:

Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>GENERAL DESCRIPTION>SPECIFICATION .
When the flow of the differential gear oil turns into a narrow stream, install the overflow drain plug using a new gasket.
Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the oil charge pipe cap.
