Parking Pawl: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Shift the range select lever to "N" range.
  3. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .

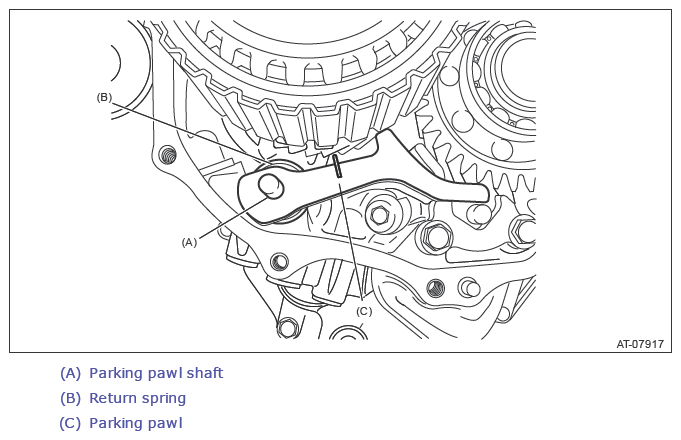

  4. Remove the parking pawl shaft, return spring and parking pawl.
G13200155Courtesy of SUBARU OF AMERICA, INC.
