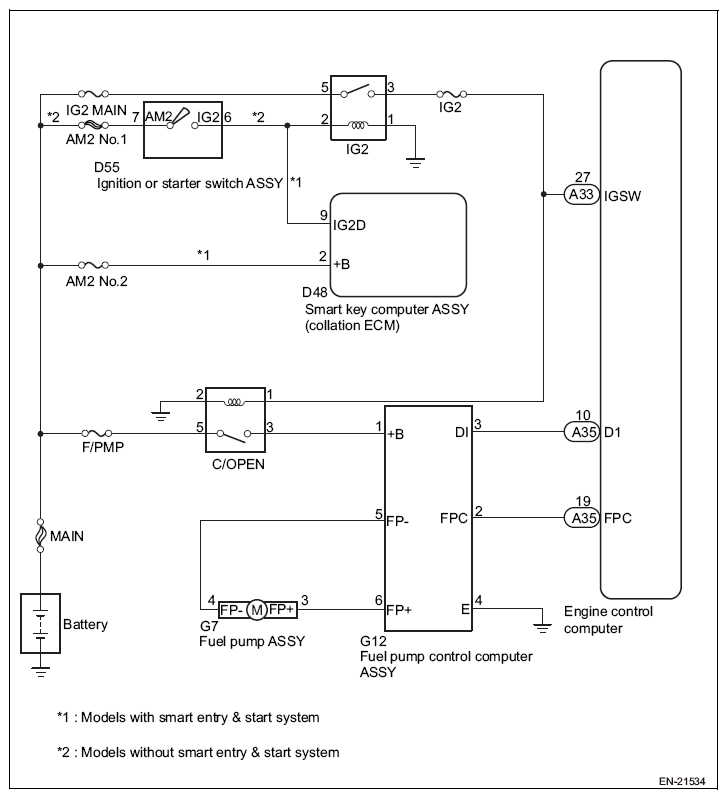

Home › Subaru › 2019 › BRZ Limited, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Engine Control System (Diagnostics) (System & Circuit Tests) › EFI System (FA20) › Fuel Pump Control System › Circuit figure
