Components With Torque Specifications

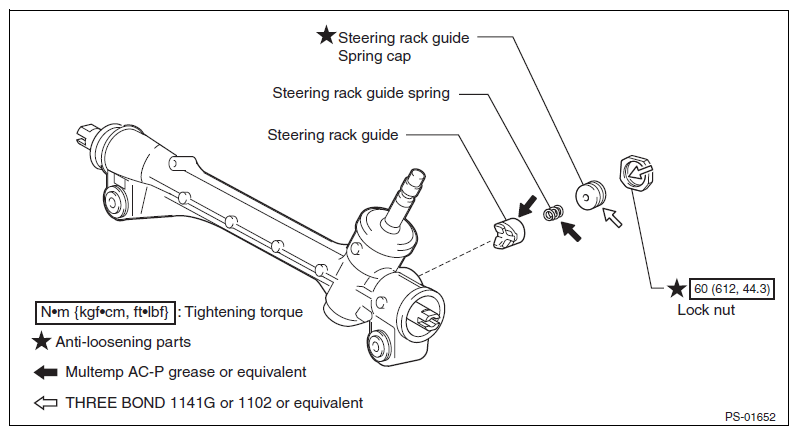

Fig 1: Exploded View Of Steering Linkage Components (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

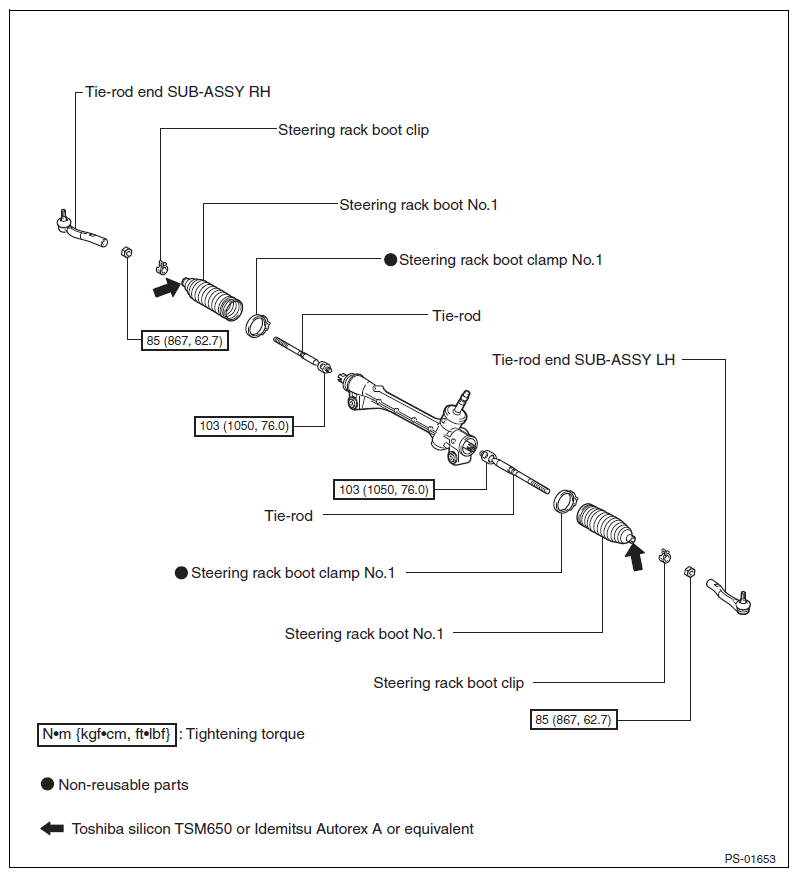

Fig 2: Exploded View Of Steering Linkage Components (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

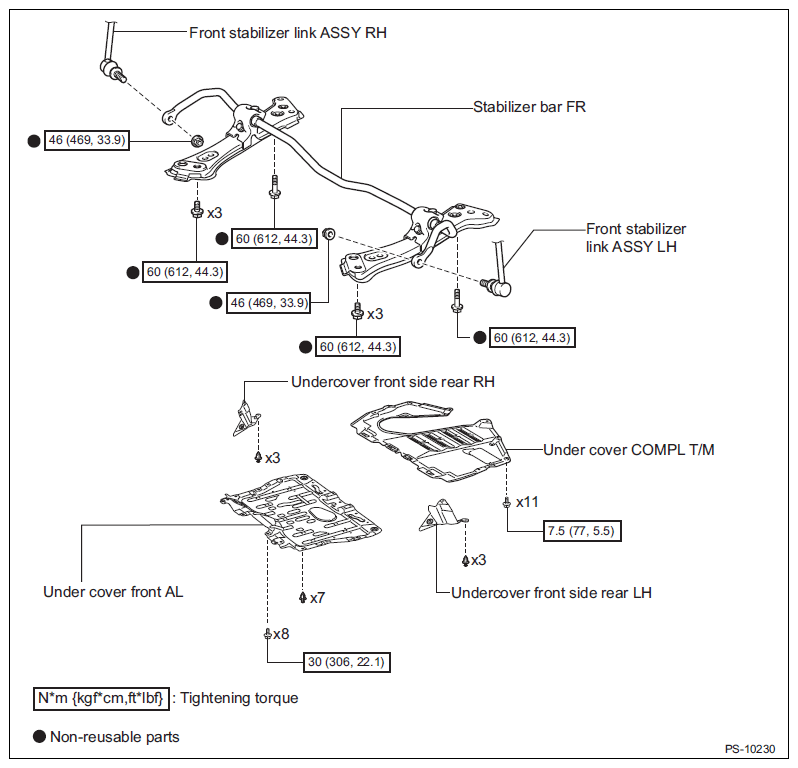

Fig 3: Exploded View Of Steering Linkage Components (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Exploded View Of Steering Linkage Components (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Exploded View Of Steering Linkage Components (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
